BUTT WELD
Un raccordo Butt weld, comunemente definito con la sigla BW, è un raccordo saldabile che permette il cambiamento di direzione del flusso, attraverso la diramazione, riduzione della dimensione del tubo o per il montaggio di dispositivi ausiliari.
I raccordi BW, conosciuti anche come raccordi saldati di testa, si possono dividere in 2 categorie, i pezzi standard: curve, tee, riduzioni concentriche ed eccentriche, cap e stub ends. Poi ci sono i pezzi speciali: barred tees, lateral tees, flow tees e bend (curve dal raggio di curvatura più ampio, solitamente 3d,5d,7d,10d, ma anche con raggi di curvatura speciali). I raccordi BW o saldati di testa sono quelli utilizzati maggiormente.
I raccordi BW, conosciuti anche come raccordi saldati di testa, si possono dividere in 2 categorie, i pezzi standard: curve, tee, riduzioni concentriche ed eccentriche, cap e stub ends. Poi ci sono i pezzi speciali: barred tees, lateral tees, flow tees e bend (curve dal raggio di curvatura più ampio, solitamente 3d,5d,7d,10d, ma anche con raggi di curvatura speciali). I raccordi BW o saldati di testa sono quelli utilizzati maggiormente.
Tutti i raccordi Butt Weld

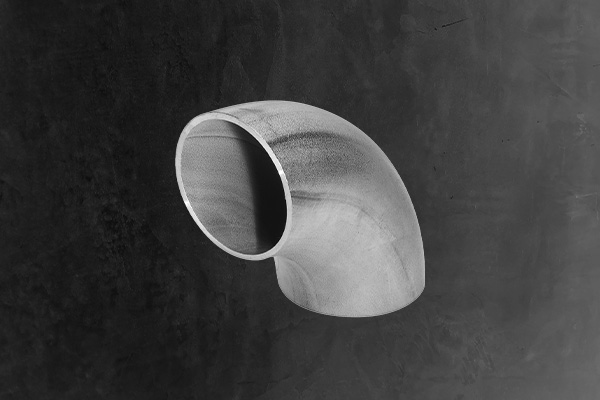

Curve ASME
Produzione
• ASME B16.25
Dimensione
• 1/2” – 42” (oltre a richiesta)
Materiale
• ASTM A 234 WPB WPC WP1 WP5 WP9 WP11 WP22 WP91 WP911
• ASTM A 420 WPL6 WPL3
• ASTM A 403 WP 304-304L – 316-316L – 321
• Acciai e leghe speciali a richiesta
• ASTM A860 WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70
• ASTM A 420 WPL6 WPL3
• ASTM A 403 WP 304-304L – 316-316L – 321
• Acciai e leghe speciali a richiesta
• ASTM A860 WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70

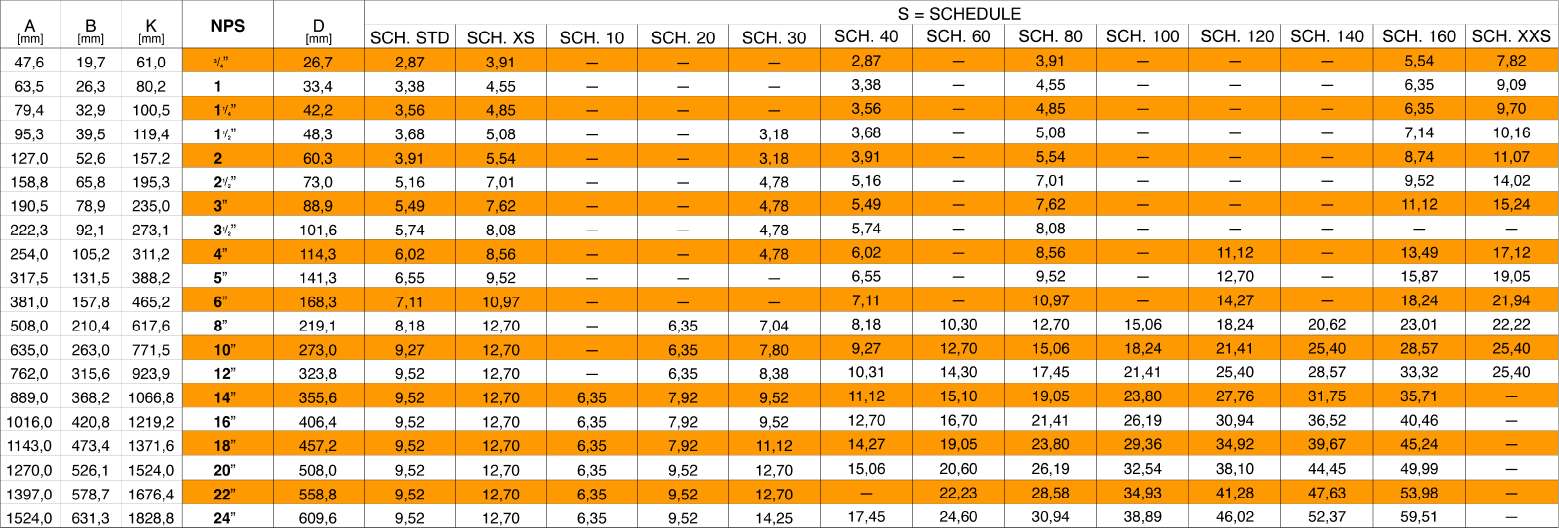

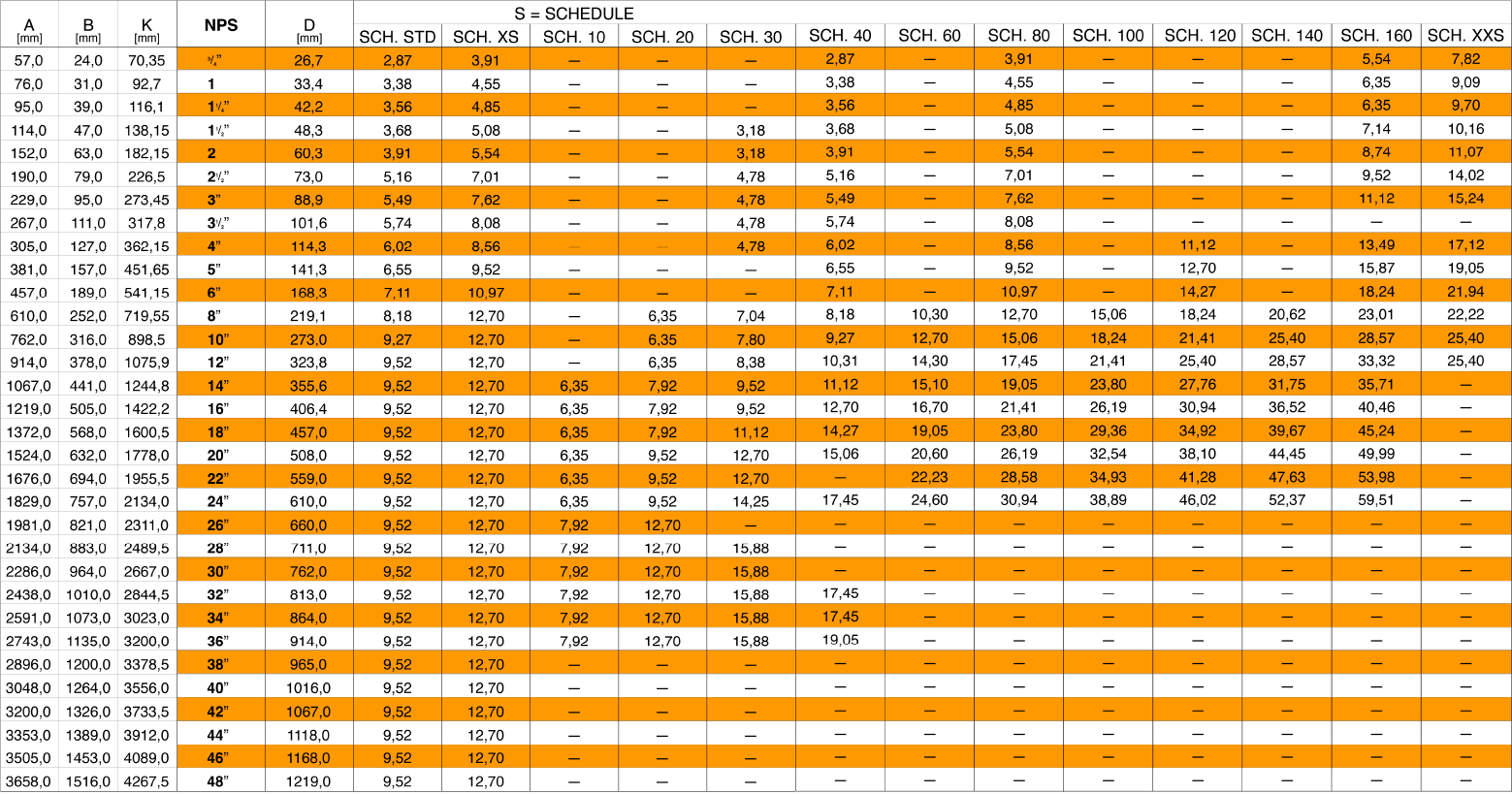

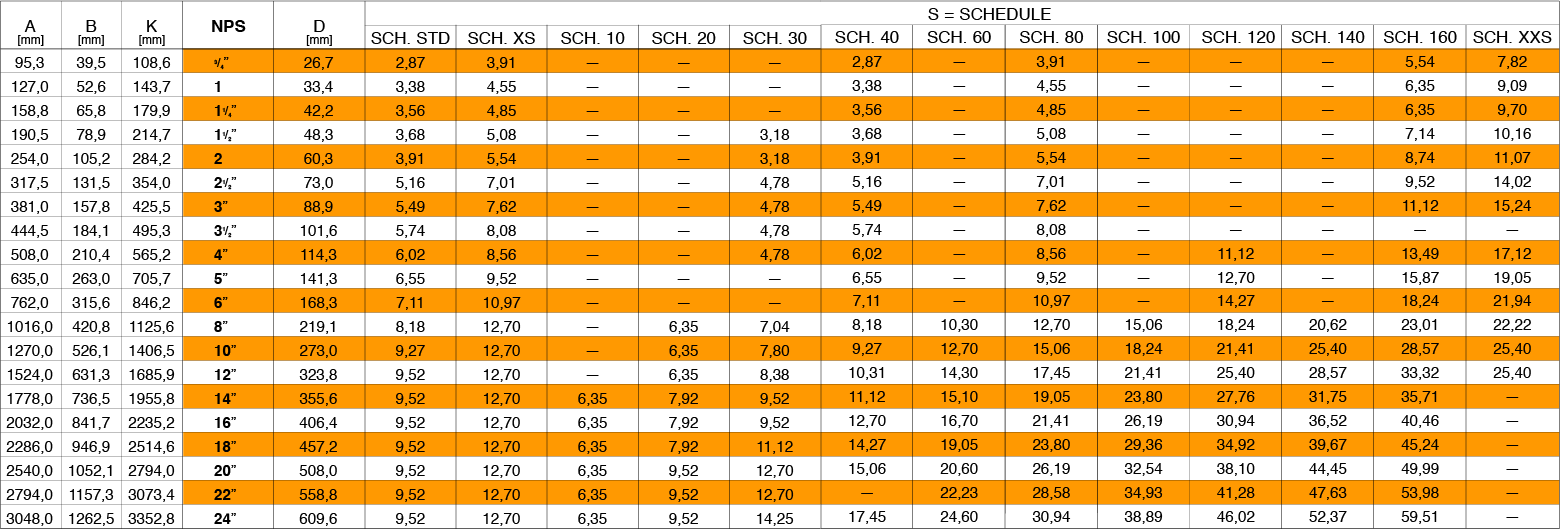

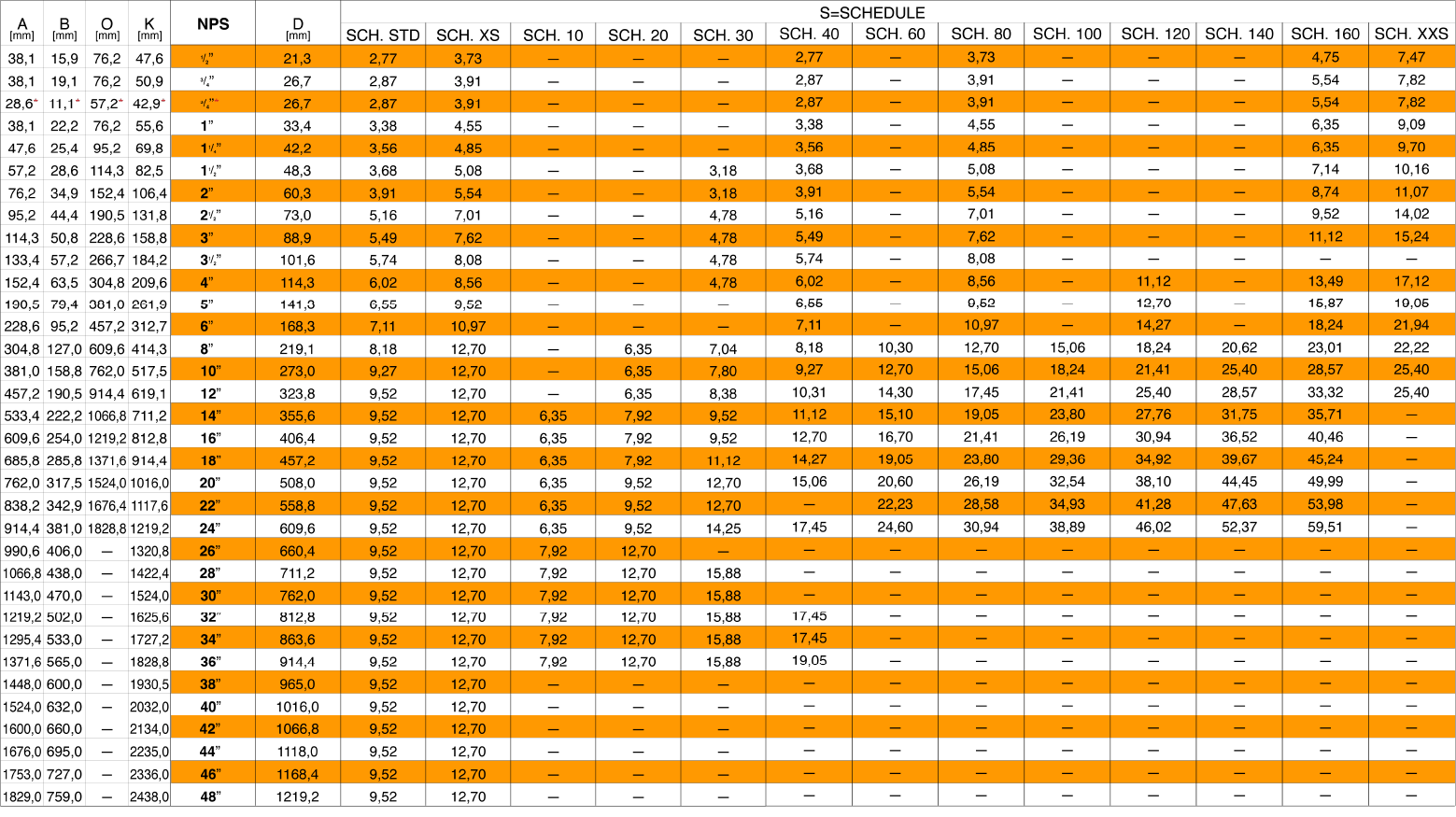

Tabelle Dimensionali ASME

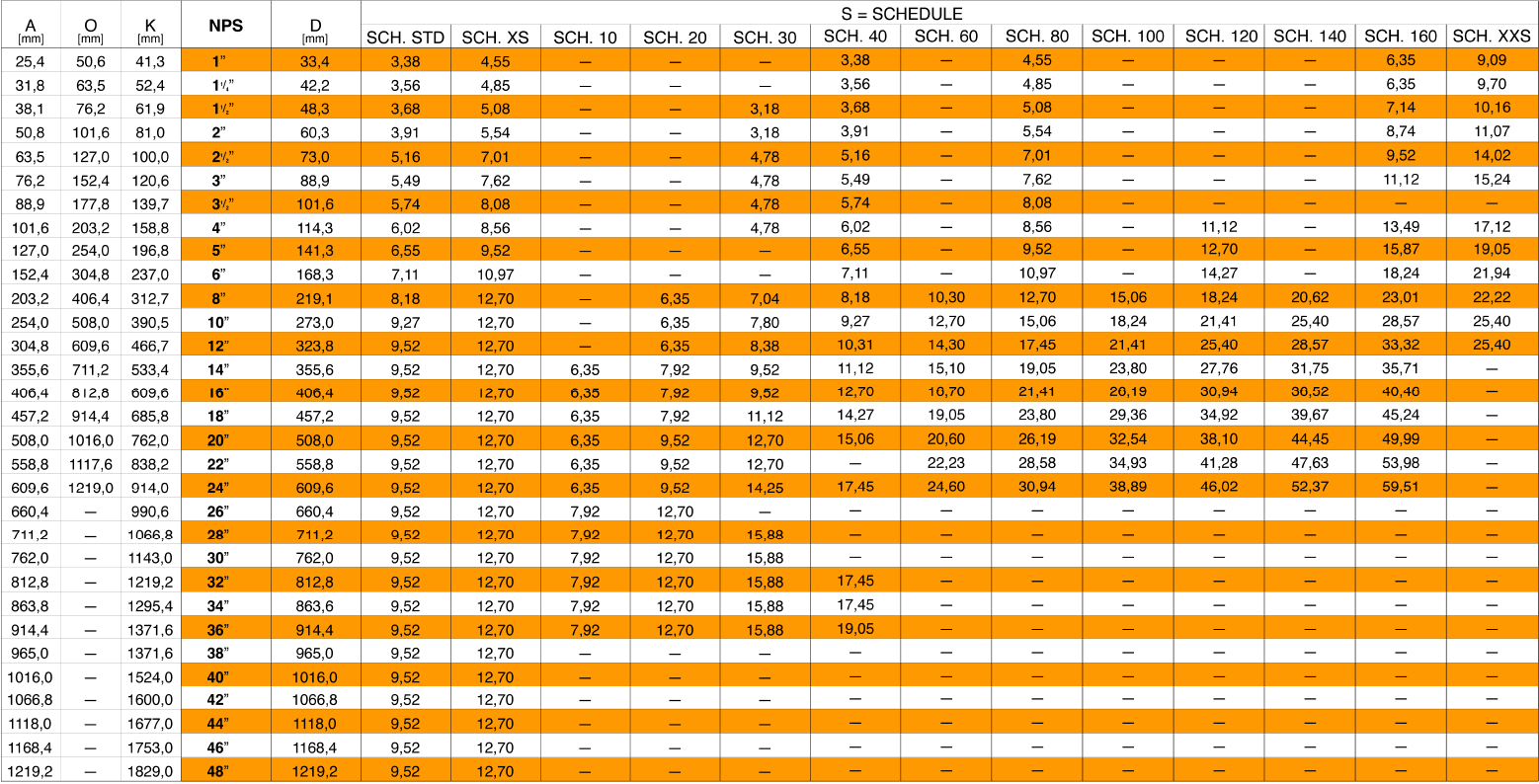

Short Radius (R= 1 D)
Long Radius (R= 1,5 D)
Radius (R= 2,5 D)
Radius (R= 3 D)
Radius (R= 5 D)
Curve EN / DIN / ISO
Produzione
• ASME B16.25
Dimensione
• 1/2” – 42” (oltre a richiesta)
Materiale
• ASTM A 234 WPB WPC WP1 WP5 WP9 WP11 WP22 WP91 WP911
• ASTM A 420 WPL6 WPL3
• ASTM A 403 WP 304-304L – 316-316L – 321
• Acciai e leghe speciali a richiesta
• ASTM A860 WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70
• ASTM A 420 WPL6 WPL3
• ASTM A 403 WP 304-304L – 316-316L – 321
• Acciai e leghe speciali a richiesta
• ASTM A860 WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70

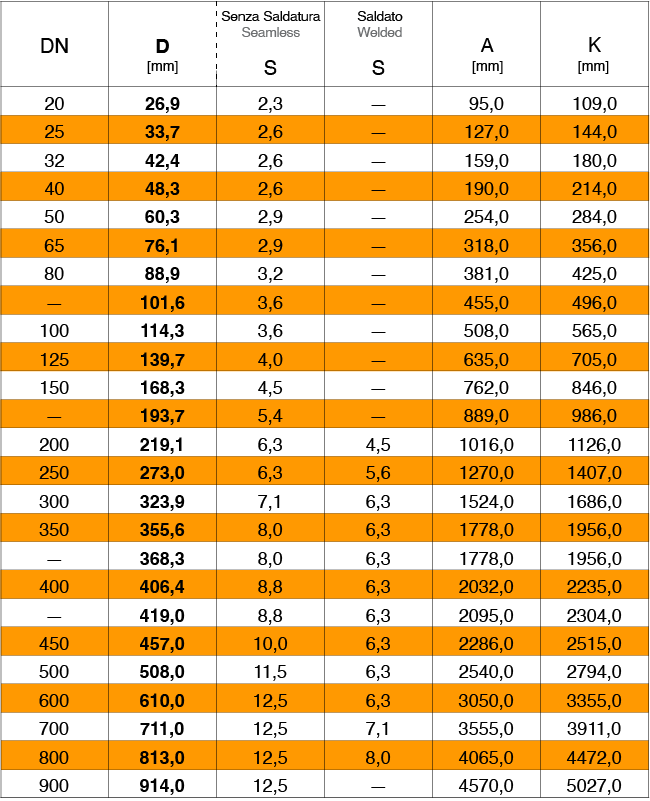

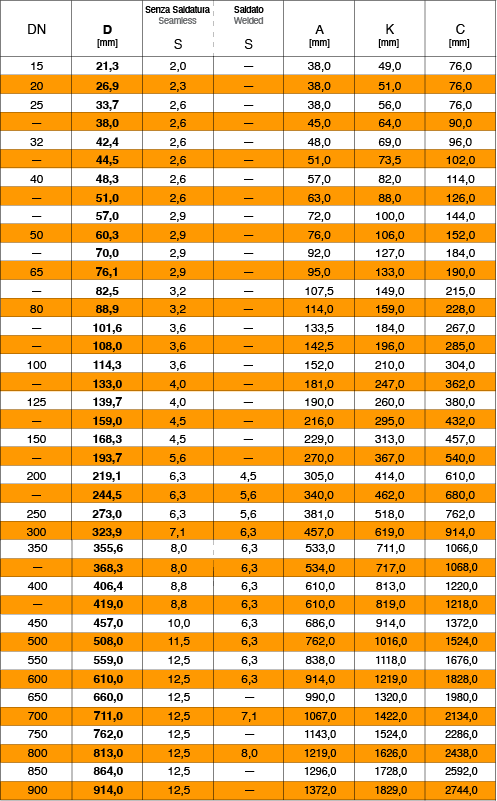

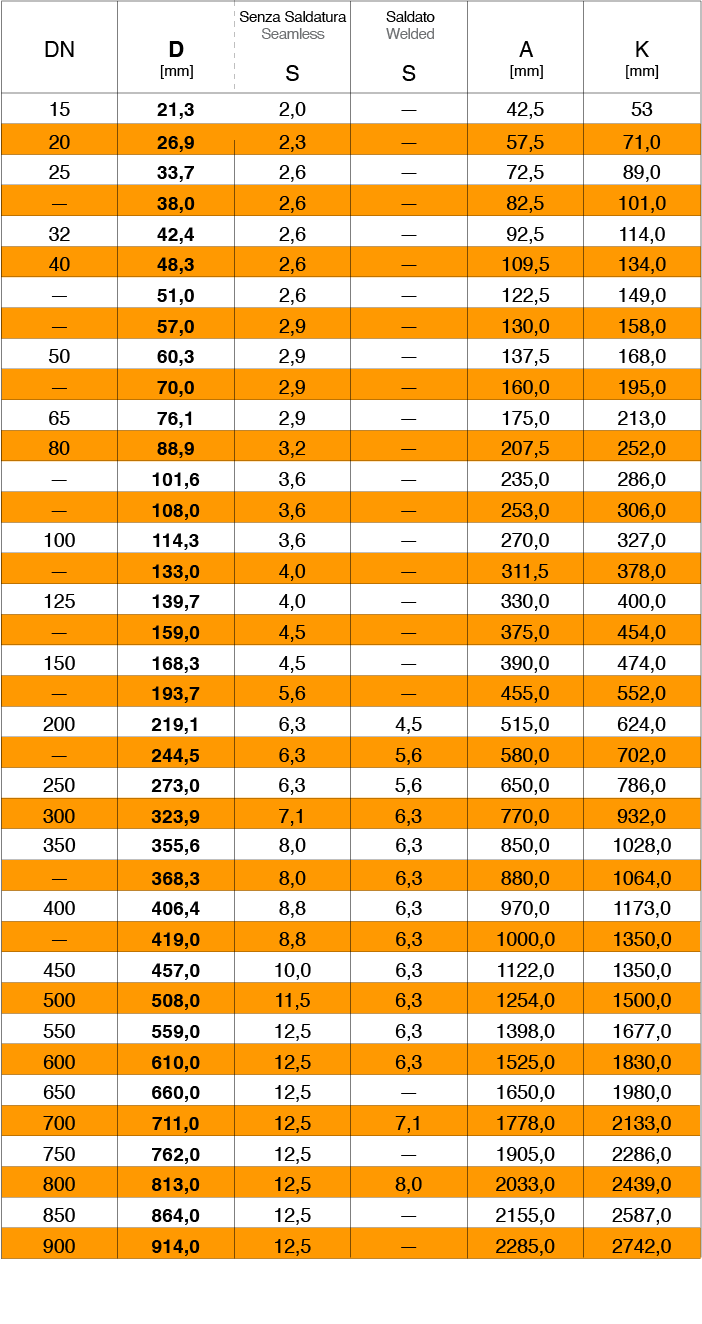

Tabelle Dimensionali EN / DIN / ISO
Long Radius (R= 1,5 D)
Radius (R= 2,5 D)
Radius (R= 5 D)

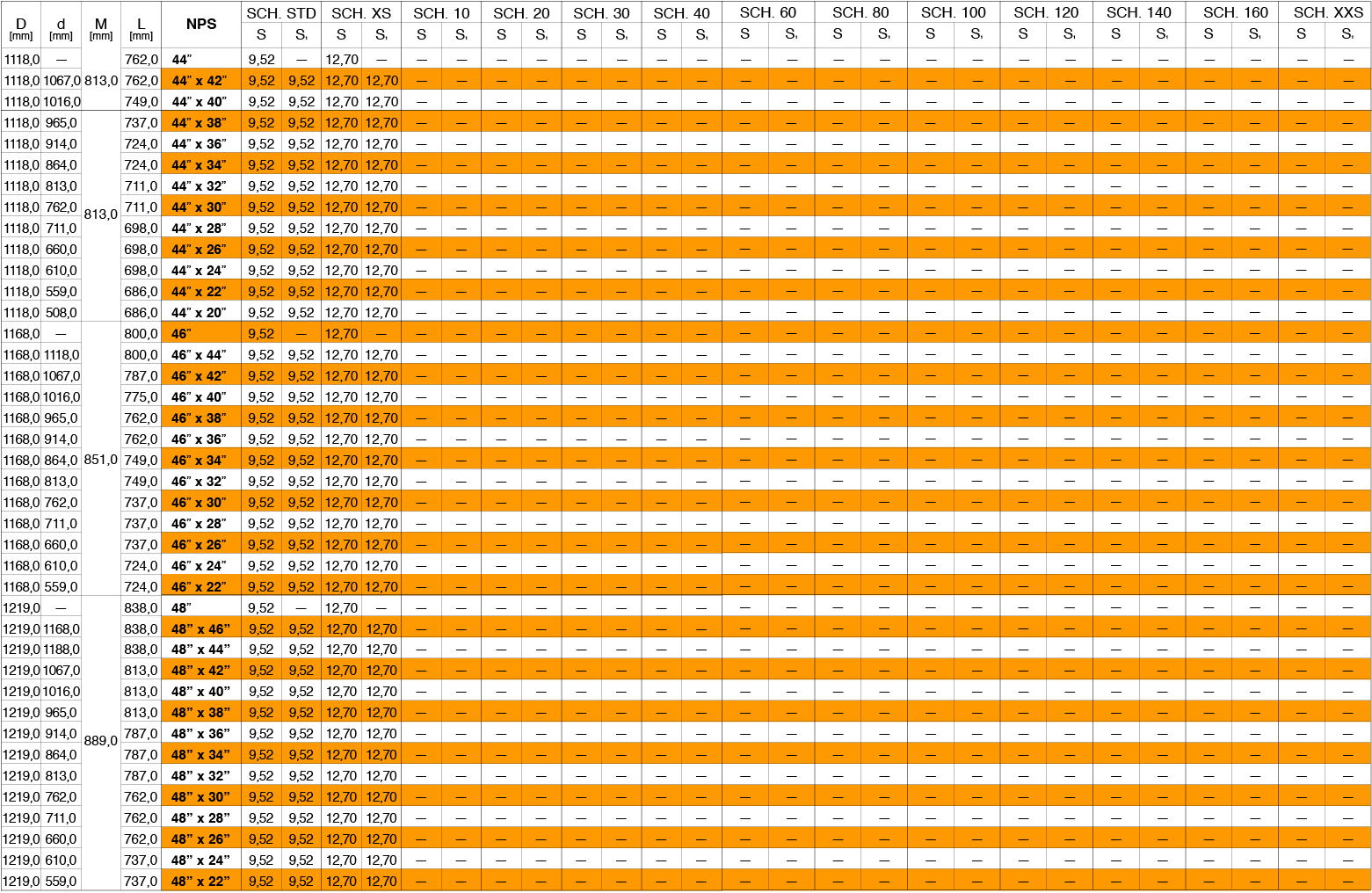

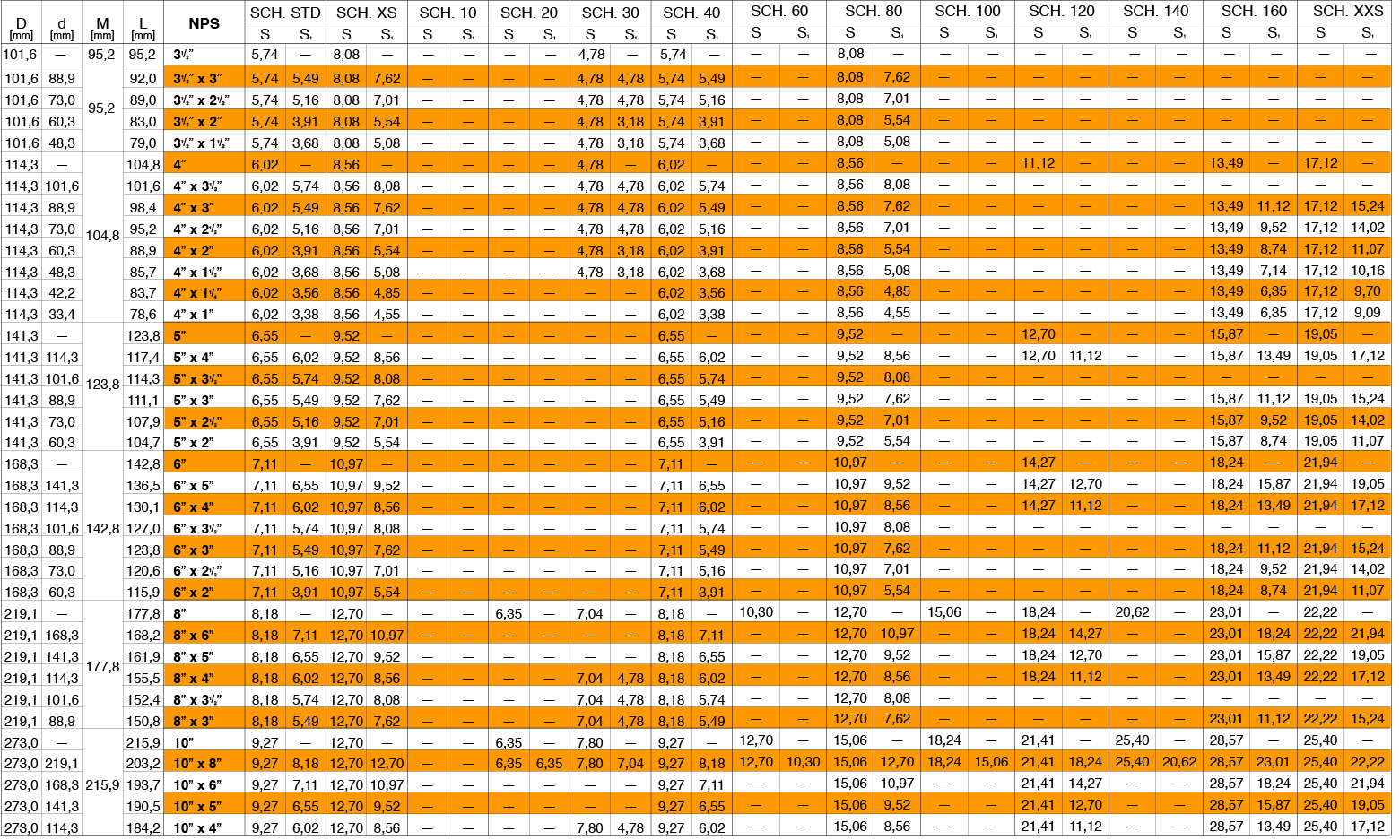

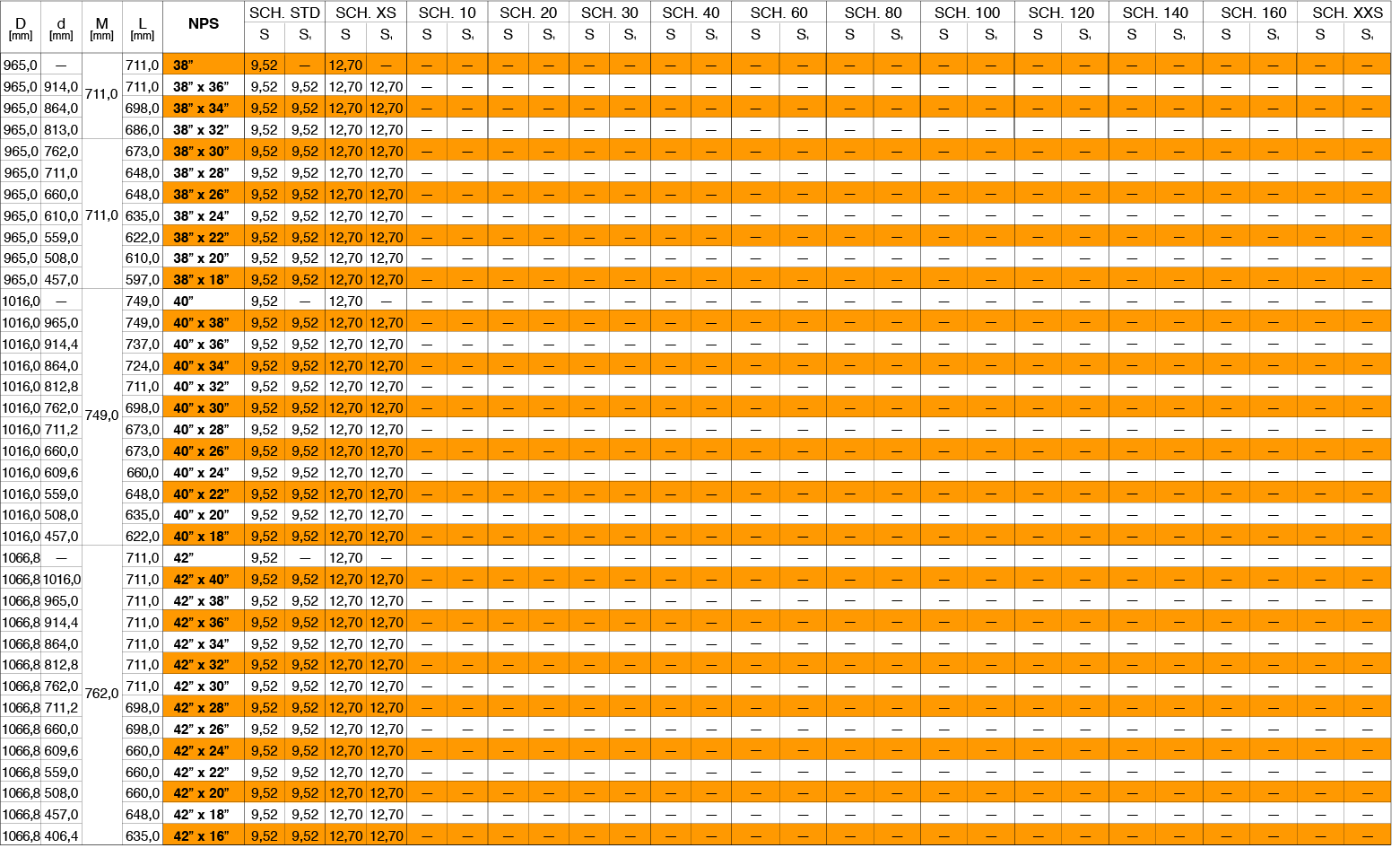

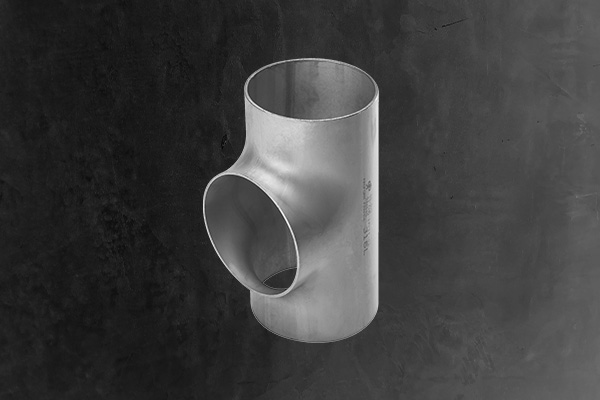

Tee
Produzione
• ASME B16.9 – ASME B16.25
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS – SP 75
• EN 10253-1
• EN 10253-2
• EN 10253-4
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS – SP 75
• EN 10253-1
• EN 10253-2
• EN 10253-4
Dimensione
• 1/2” – 42” (oltre a richiesta)
Smusso
• ASME B16.25
• EN 10253-1
• EN 10253-2
• EN 10253-4
• EN 10253-1
• EN 10253-2
• EN 10253-4
Materiale
• ASME/ASTM SA/A 234 WPB – WP11 – WP22 – WP9 WP91 – WP5 – WP12
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70
• ASTM/ASME A/SA 403 WP304/304L + WP 316/316L
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• EN 10253-2 P235GH/P265GH/P355NH/P355NL-1/L360NB/ L415QB/X11CrMo9-1/13CrMo4-5/10CrMo9-10/L290NB
• 16Mo03/P265NL/X11CrMo5
• EN 10253-4 X6 CrNiTi 10-10/X2 CrNiMo 17-12-2
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70
• ASTM/ASME A/SA 403 WP304/304L + WP 316/316L
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• EN 10253-2 P235GH/P265GH/P355NH/P355NL-1/L360NB/ L415QB/X11CrMo9-1/13CrMo4-5/10CrMo9-10/L290NB
• 16Mo03/P265NL/X11CrMo5
• EN 10253-4 X6 CrNiTi 10-10/X2 CrNiMo 17-12-2
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281

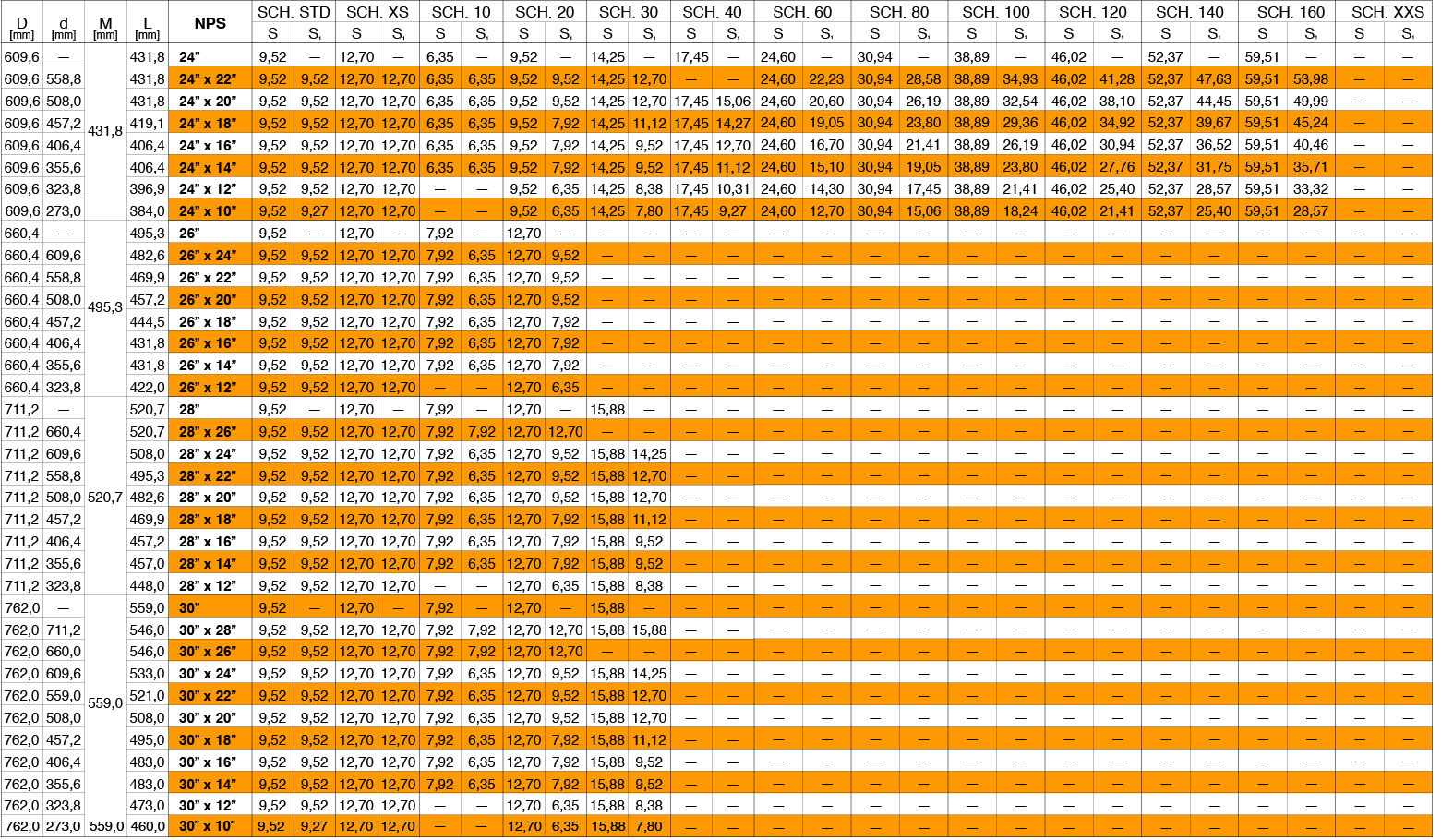

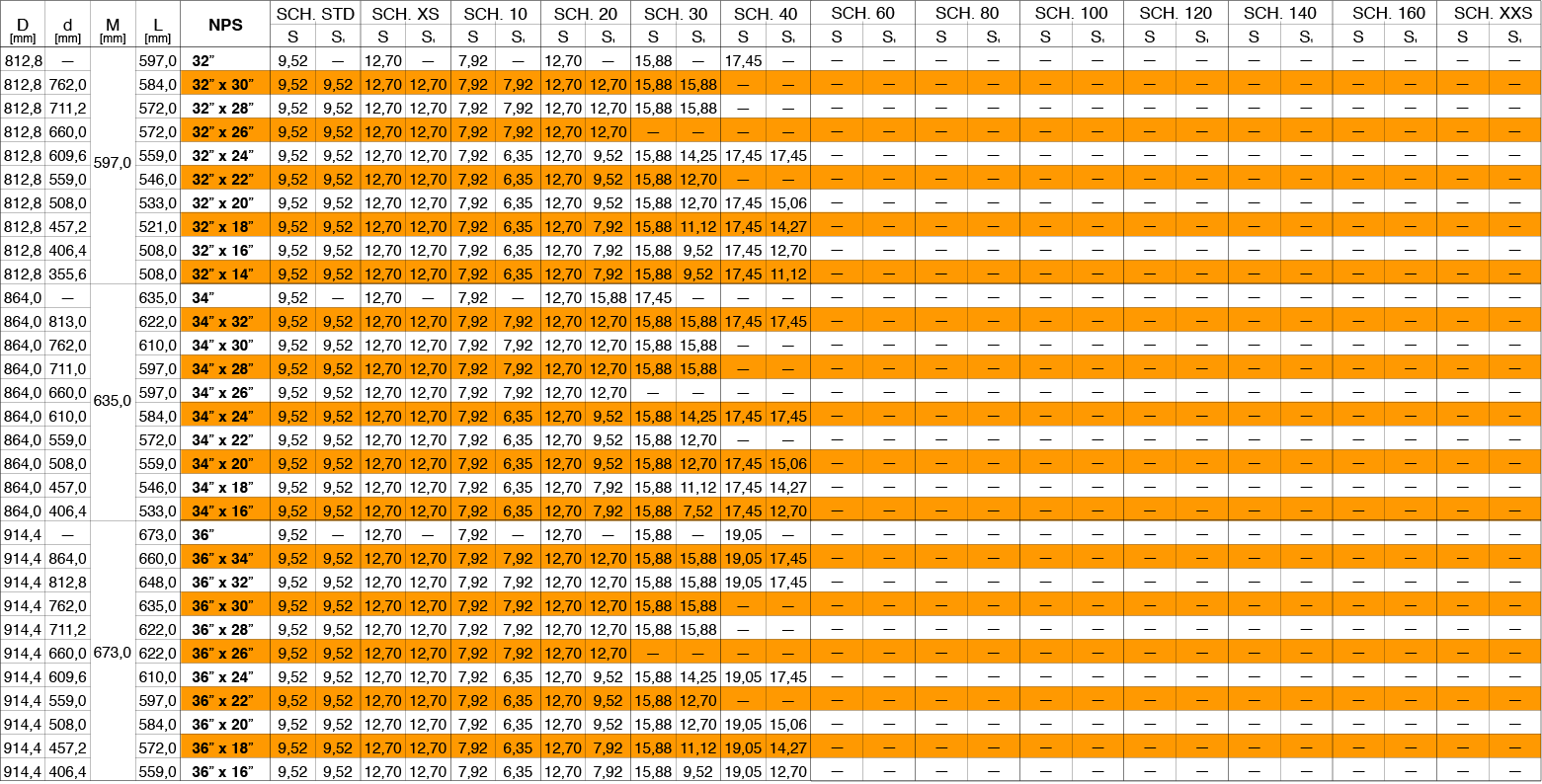

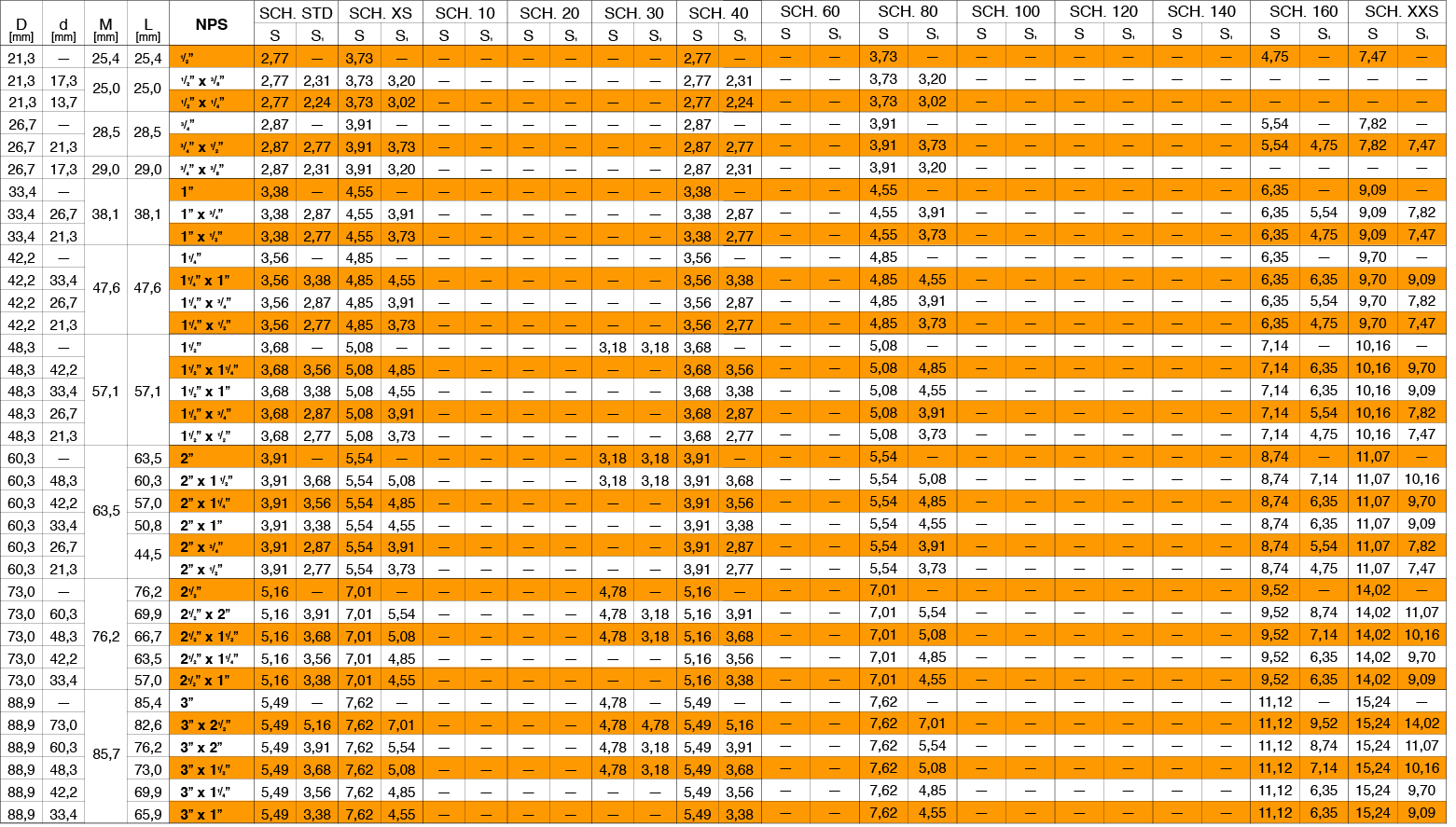

Tabelle Dimensionali
da 1/2" a 3"
da 3 1/2" a 10"
da 12" a 22"
da 24" a 30"
da 32" a 36"
da 38" a 42"
da 44" a 48"

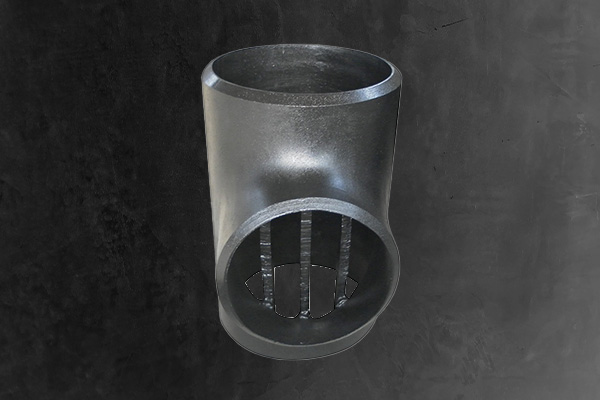

Tee Barrati
Produzione
• ASME B16.9 – ASME B16.25
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS – SP 75
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS – SP 75
Dimensione
• 1/2” – 42” (oltre a richiesta)
Smusso
• ASME B16.25
Materiale
• ASME/ASTM SA/A 234 WPB – WP11 – WP22 – WP9 – WP91 WP5 – WP12
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281

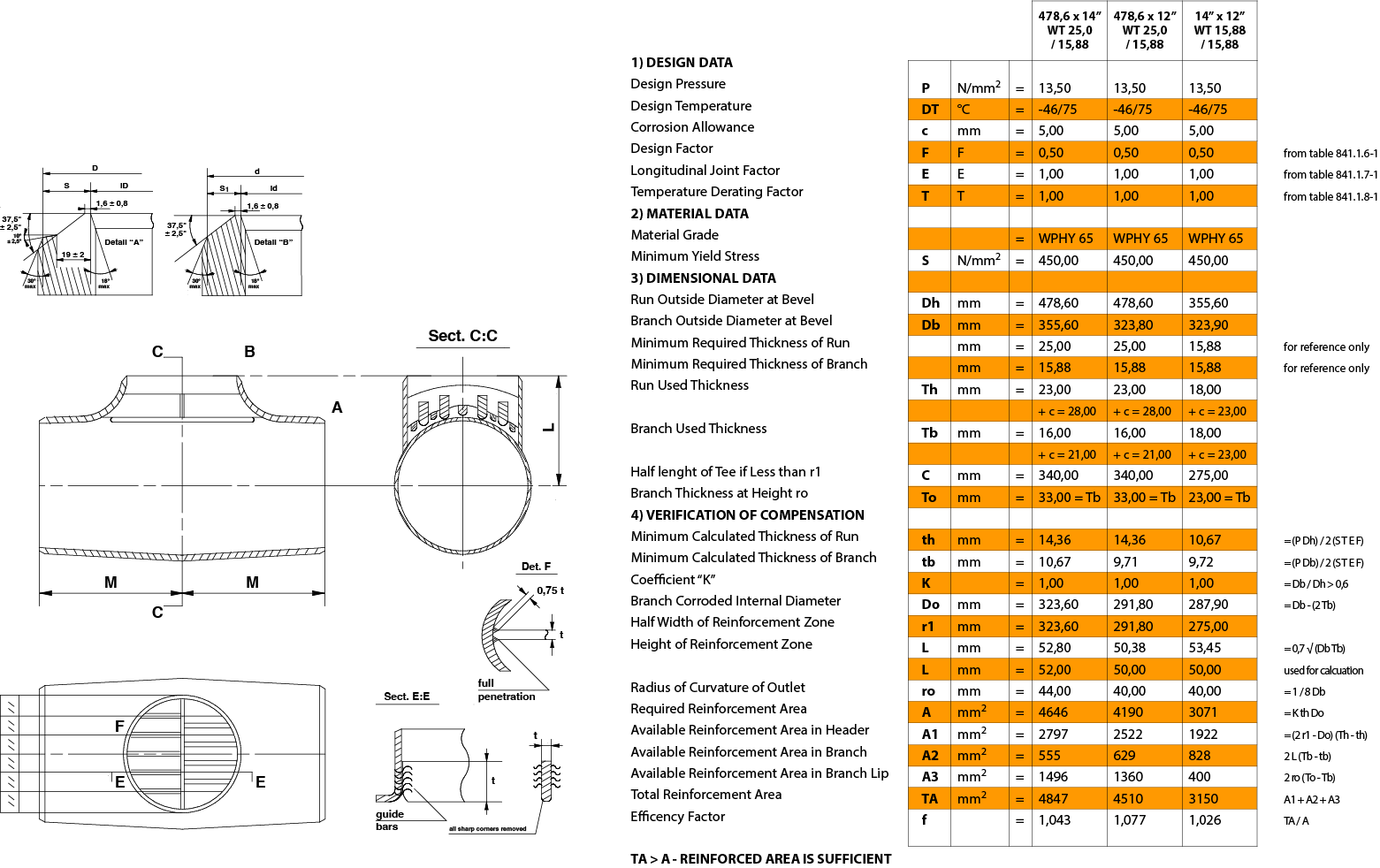

Tabella Dimensionale

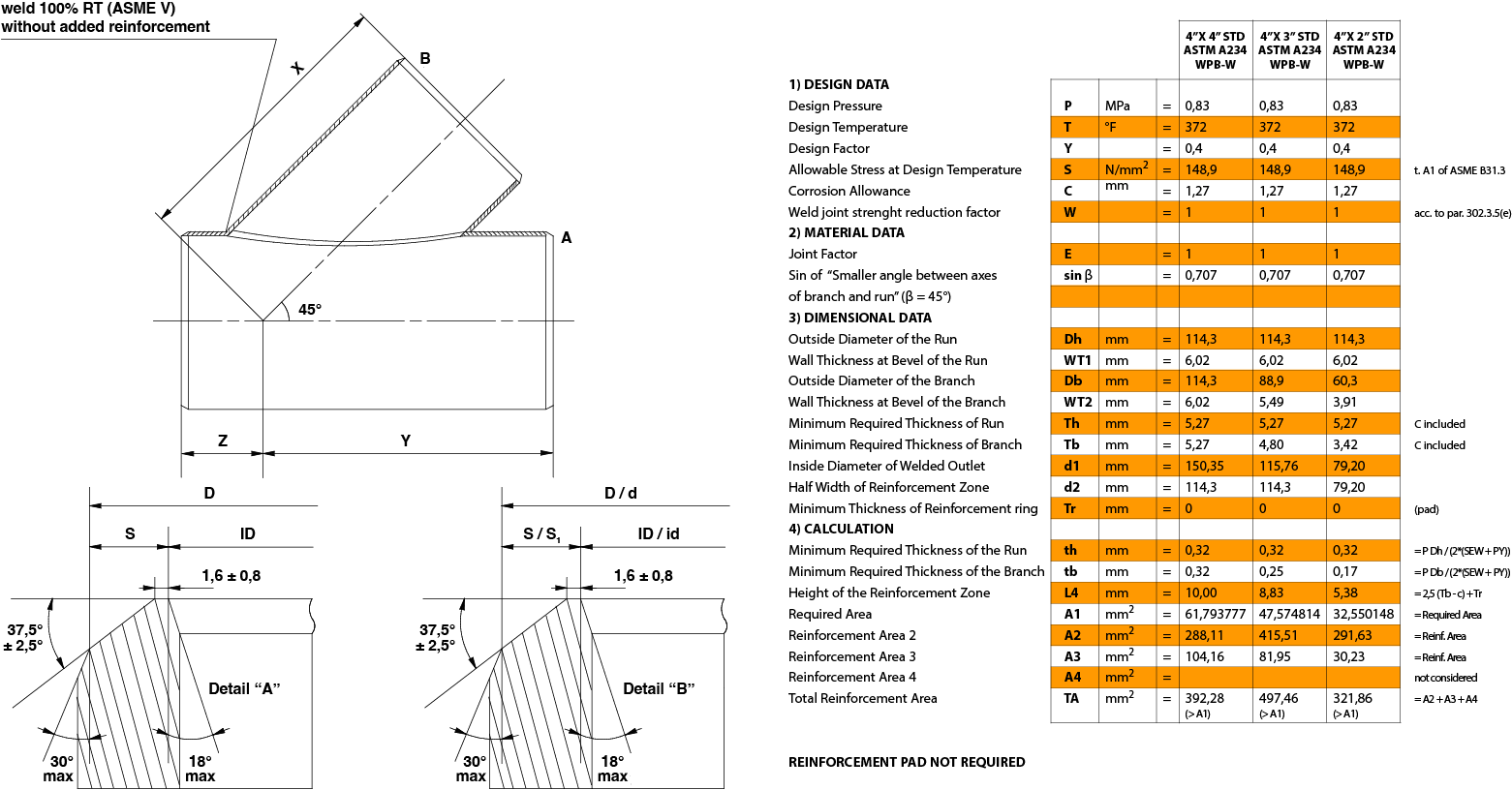

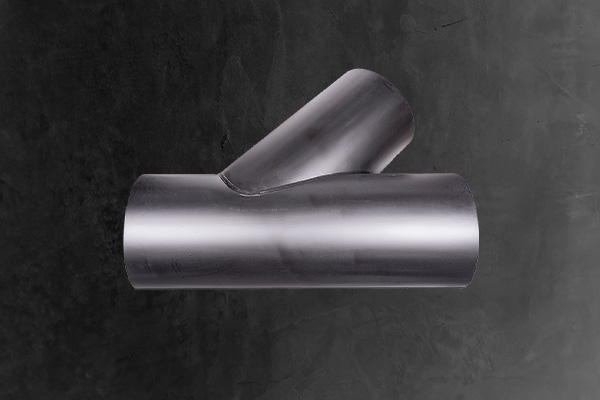

Tee Laterali
Produzione
• ASME B16.9 – ASME B16.25
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS – SP 75
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS – SP 75
Dimensione
• 1/2” – 48” (oltre a richiesta)
Smusso
• ASME B16.25
Materiale
• ASME/ASTM SA/A 234 WPB – WP11 – WP22 – WP9 WP91 – WP5 – WP12
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70
• ASTM/ASME A/SA 403 WP304/304L + WP 316/316L
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70
• ASTM/ASME A/SA 403 WP304/304L + WP 316/316L
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281

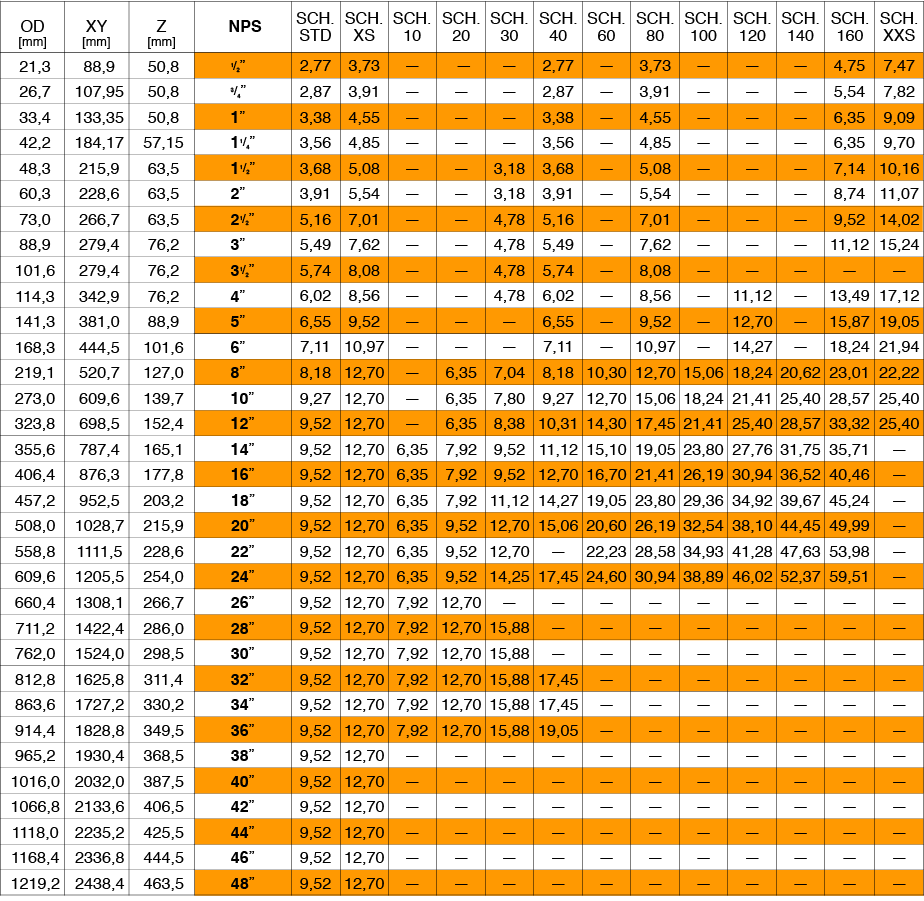

Tabelle Dimensionali
Calcoli
da 1/2" a 48"

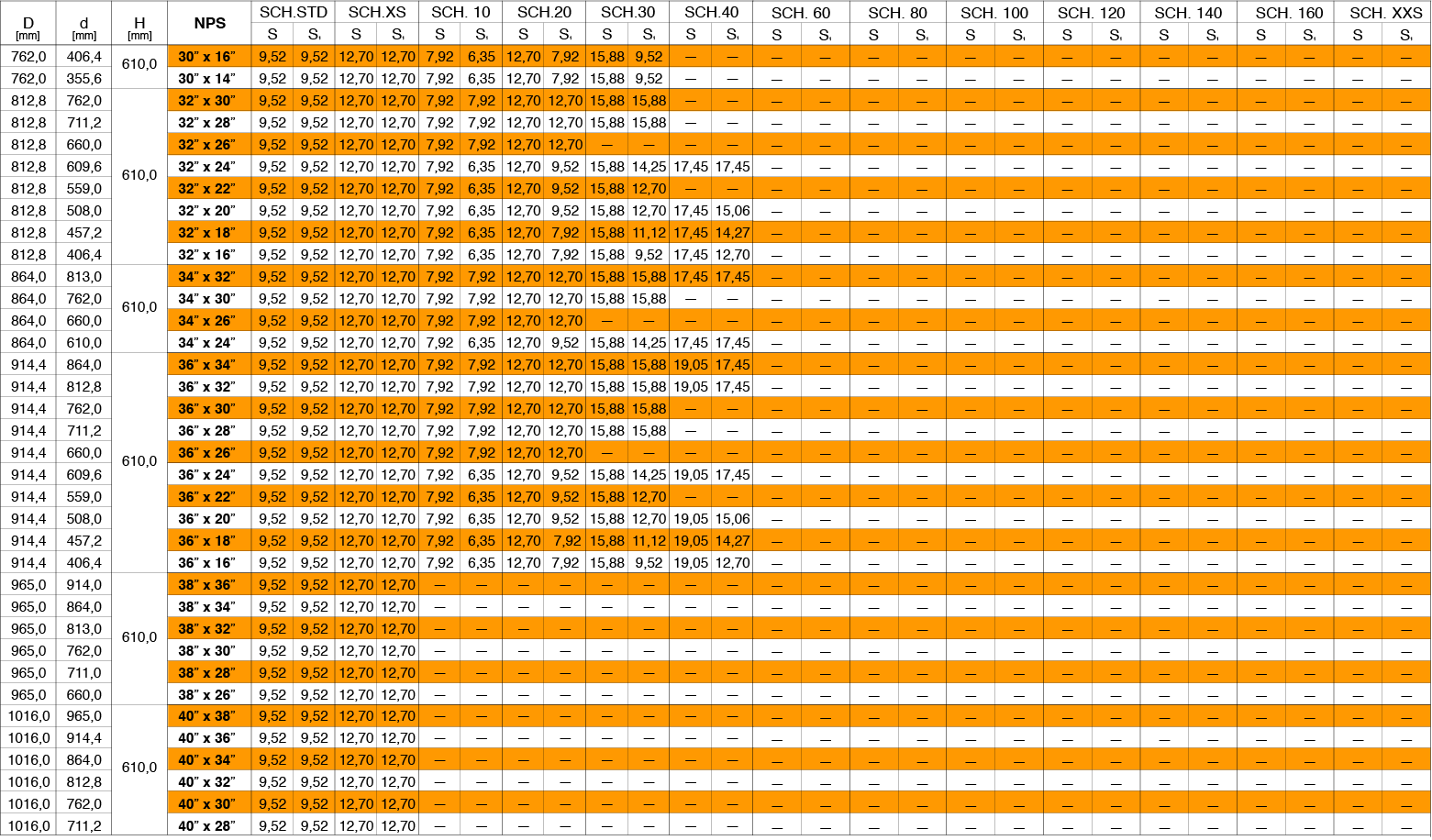

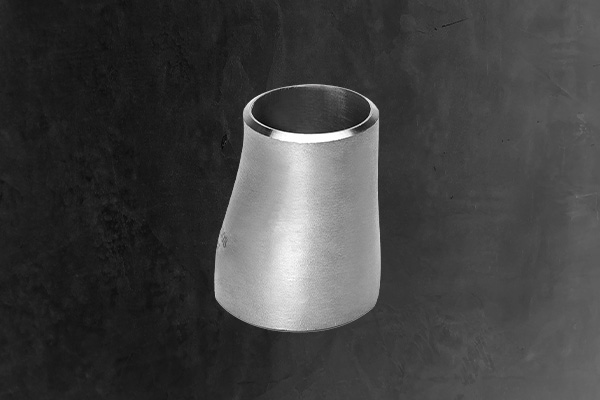

Riduzioni Concentriche ed eccentriche
Produzione
• ASME B16.9 – ASME B16.25
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS – SP 75
• EN 10253-1
• EN 10253-2
• EN 10253-4
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS – SP 75
• EN 10253-1
• EN 10253-2
• EN 10253-4
Dimensione
3/4′′ x 1/2′′ – 48′′ x 30′′ (oltre a richiesta)
Smusso
• ASME B16.25
• EN 10253-1
• EN 10253-2
• EN 10253-4
• EN 10253-1
• EN 10253-2
• EN 10253-4
Materiale
• ASME/ASTM SA/A 234 WPB – WP11 – WP22 – WP9 – WP91 WP5 – WP12
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• ASTM A860 WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• EN 10253-2 P235GH/P265GH/P355NH/P355NL 1 L360NB/L415QB/X11CrMo9-1/13CrMo4-5/10CrMo9-10/L290NB
• 16Mo03/P265NL/X11CrMo5
• EN 10253-4 X6 CrNiTi 10-10/X2 CrNiMo 17-12-2
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• ASTM A860 WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• EN 10253-2 P235GH/P265GH/P355NH/P355NL 1 L360NB/L415QB/X11CrMo9-1/13CrMo4-5/10CrMo9-10/L290NB
• 16Mo03/P265NL/X11CrMo5
• EN 10253-4 X6 CrNiTi 10-10/X2 CrNiMo 17-12-2
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281

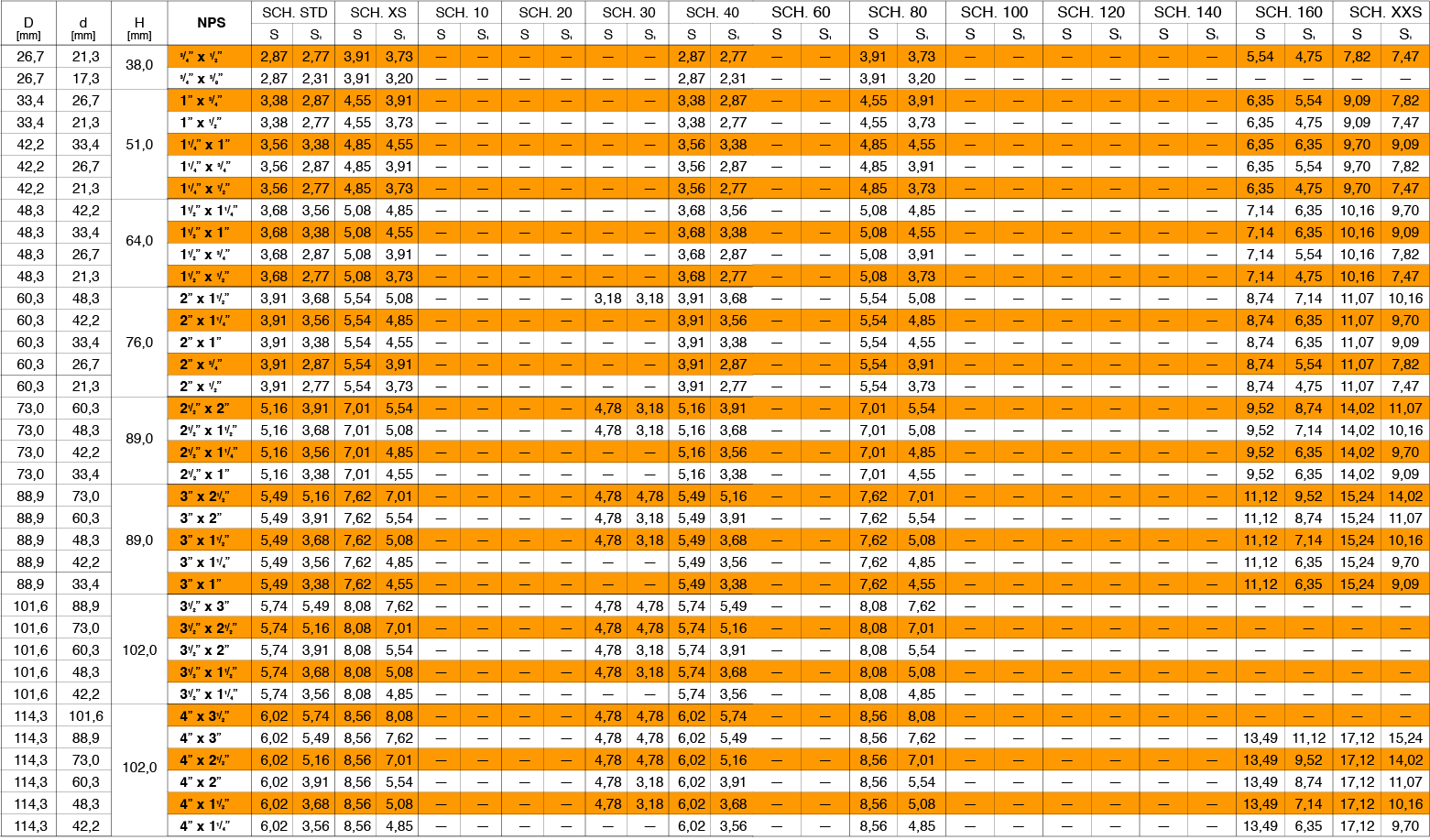

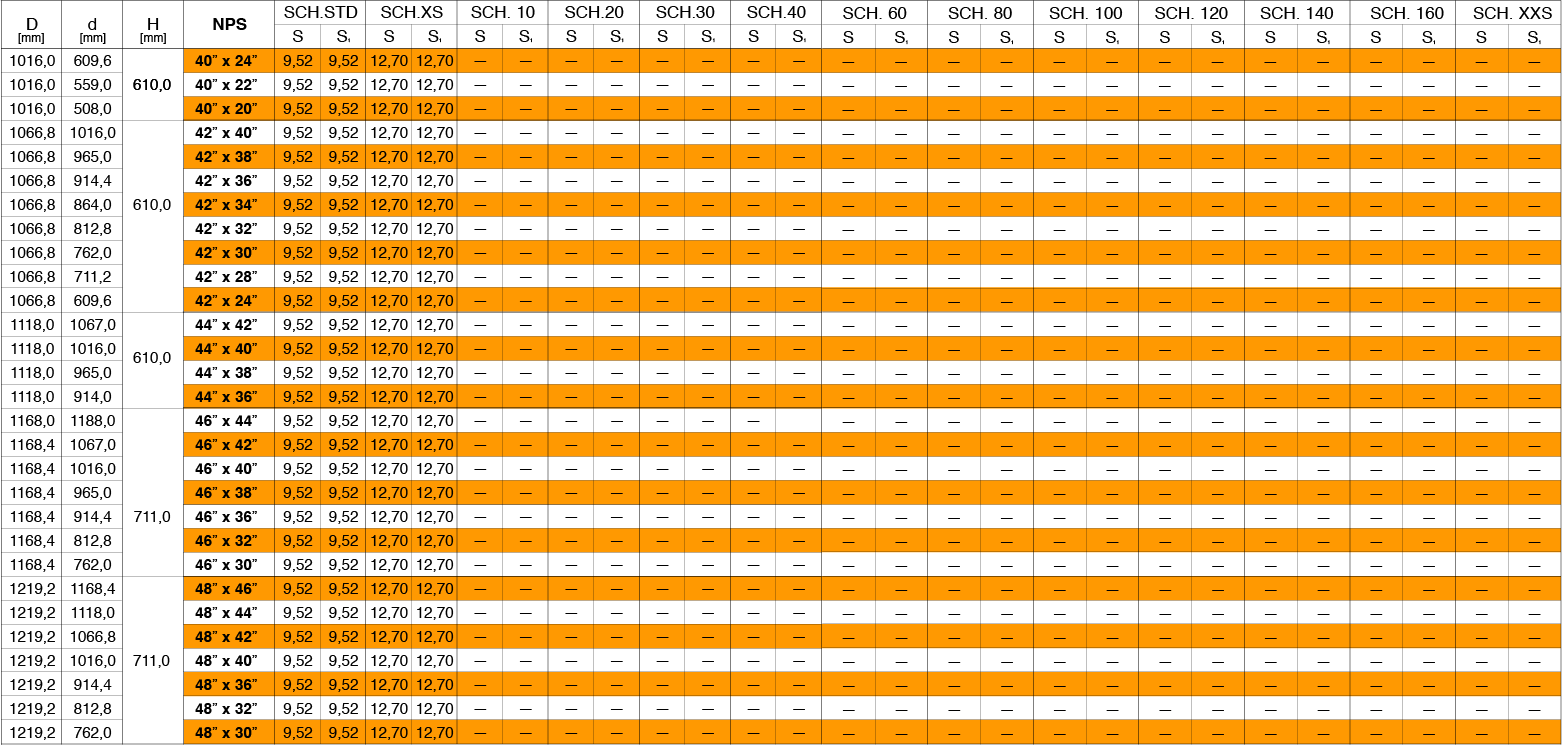

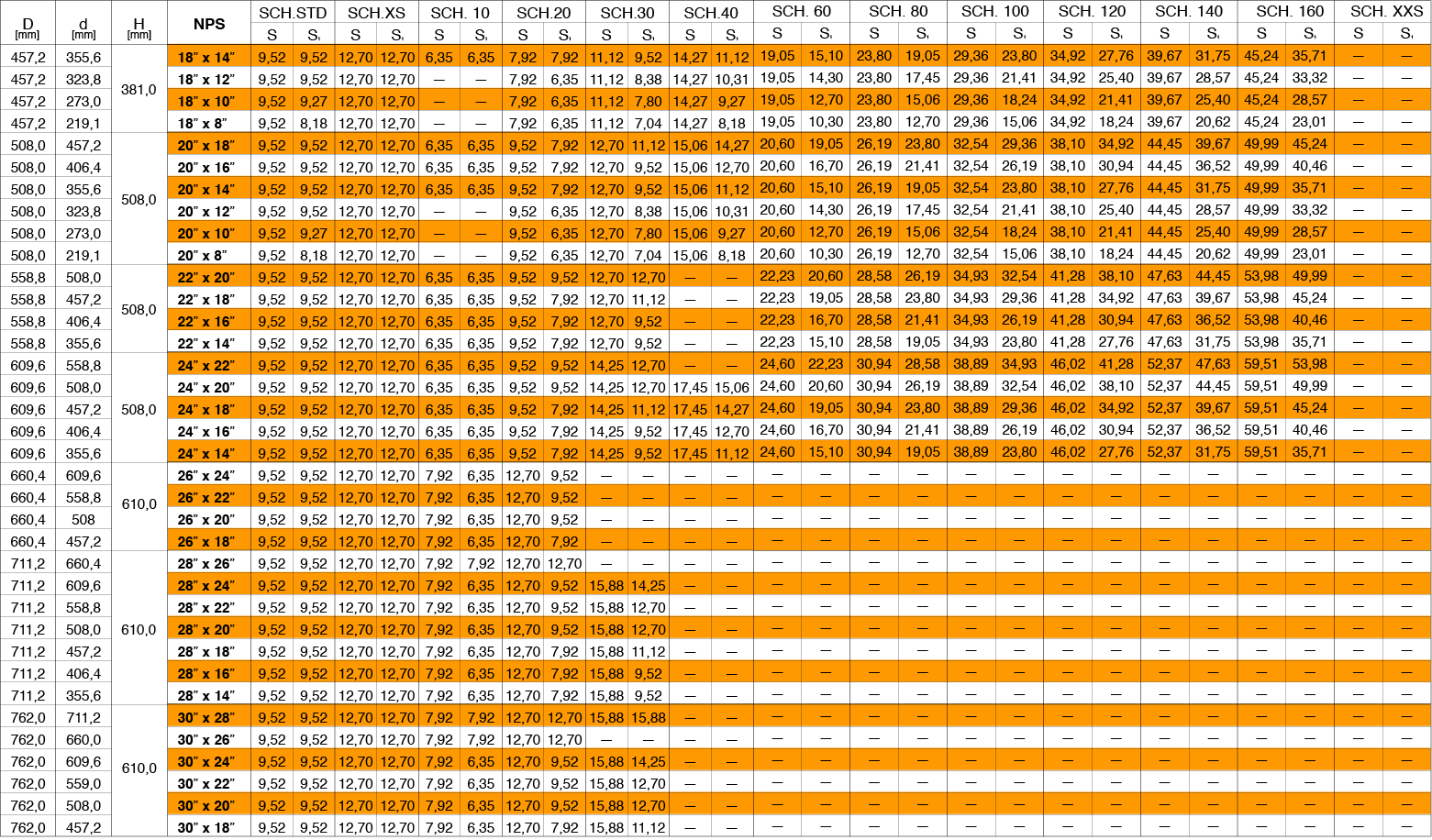

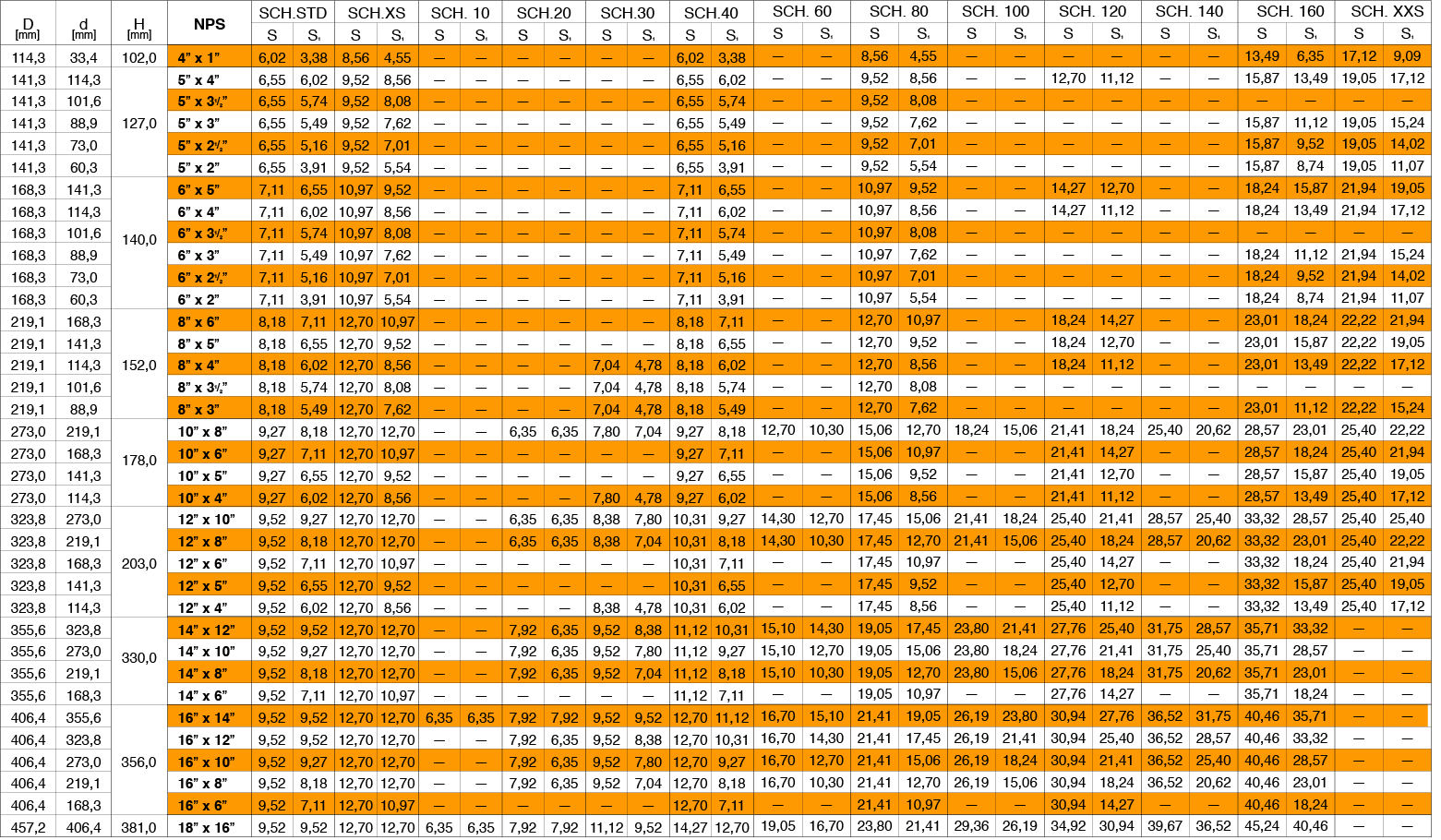

Tabelle Dimensionali
1/2" x 1/2" a 4" x 1/4"
da 4” x 1” a 18” x 16”
da 18” x 14” a 30” x 18”
da 30” x 16” a 40” x 28”
da 40” x 24” a 48” x 30”

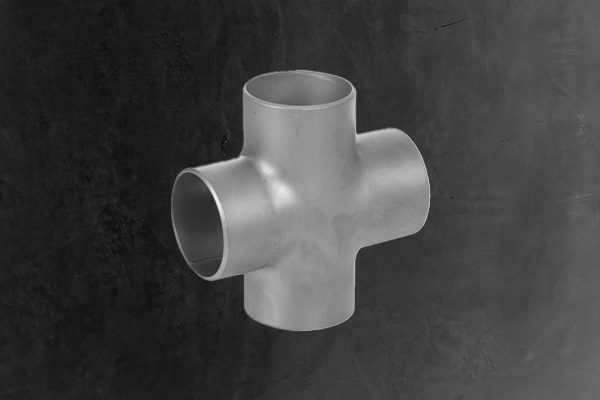

Croci
Produzione
• ASME B16.9 – ASME B16.25
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS SP-75
• EN 10253-1
• EN 10253-2
• EN 10253-4
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS SP-75
• EN 10253-1
• EN 10253-2
• EN 10253-4
Dimensione
1/2′′ – 48′′
Smusso
• ASME B16.25
• EN 10253-1
• EN 10253-2
• EN 10253-4
• EN 10253-1
• EN 10253-2
• EN 10253-4
Materiale
• ASME/ASTM SA/A 234 WPB – WP11 – WP22 – WP9 – WP91 WP5 – WP12
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• EN 10253-2 P235GH/P265GH/P355NH/P355NL 1 L360NB/L415QB/X11CrMo9-1/13CrMo4-5/10CrMo9-10/L290NB
• 16Mo03/P265NL/X11CrMo5
• EN 10253-4 X6 CrNiTi 10-10/X2 CrNiMo 17-12-2
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• EN 10253-2 P235GH/P265GH/P355NH/P355NL 1 L360NB/L415QB/X11CrMo9-1/13CrMo4-5/10CrMo9-10/L290NB
• 16Mo03/P265NL/X11CrMo5
• EN 10253-4 X6 CrNiTi 10-10/X2 CrNiMo 17-12-2
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281

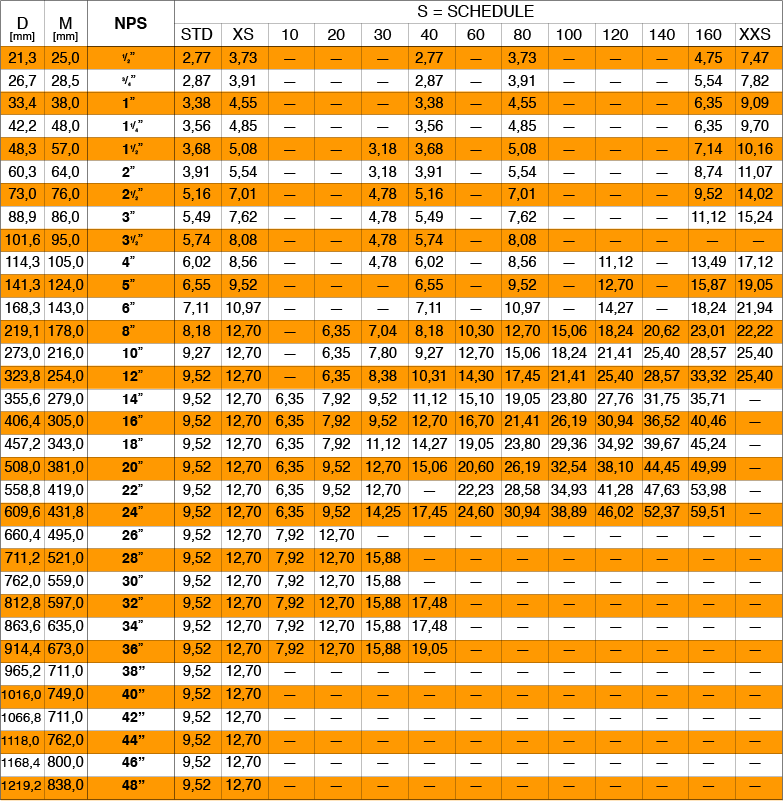

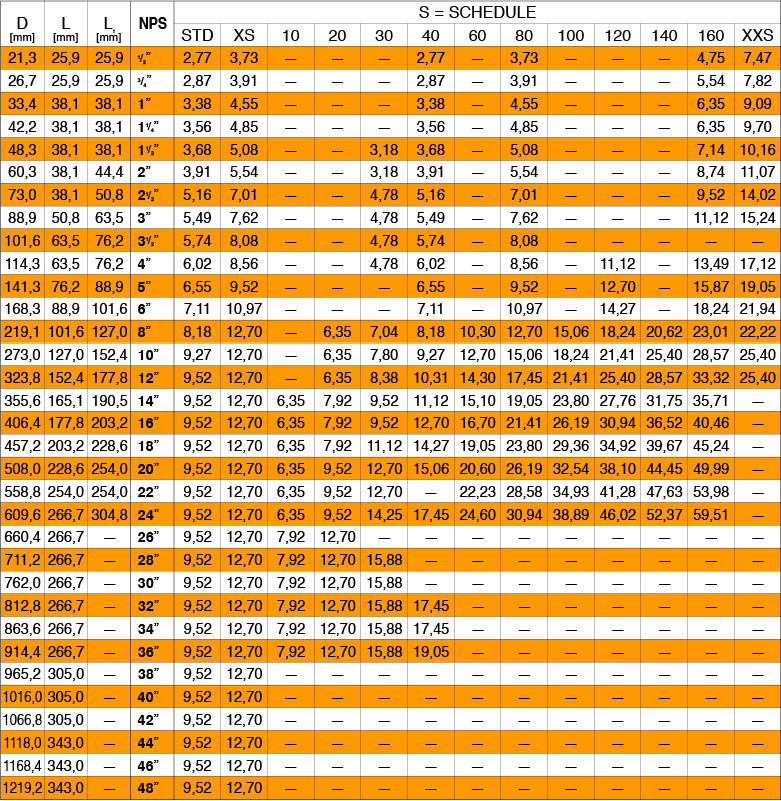

Tabella Dimensionale
da 1/2" a 48"

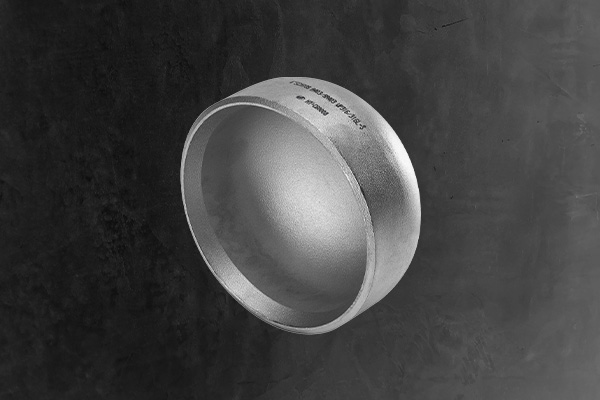

Fondelli
Produzione
• ASME B16.9 – ASME B16.25
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS – SP 75
• EN 10253-1
• EN 10253-2
• EN 10253-4
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS – SP 75
• EN 10253-1
• EN 10253-2
• EN 10253-4
Dimensione
1/2′′ – 48′′
Smusso
• ASME B16.9 – ASME B16.25
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS SP-75
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS SP-75
Materiale
• ASME/ASTM SA/A 234 WPB – WP11 – WP22 – WP9 – WP91 WP5 – WP12
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• EN 10253-2 P235GH/P265GH/P355NH/P355NL 1 L360NB/L415QB/X11CrMo9-1/13CrMo4-5/10CrMo9-10/L290NB
• 16Mo03/P265NL/X11CrMo5
• EN 10253-4 X6 CrNiTi 10-10/X2 CrNiMo 17-12-2
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• EN 10253-2 P235GH/P265GH/P355NH/P355NL 1 L360NB/L415QB/X11CrMo9-1/13CrMo4-5/10CrMo9-10/L290NB
• 16Mo03/P265NL/X11CrMo5
• EN 10253-4 X6 CrNiTi 10-10/X2 CrNiMo 17-12-2
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281
Tabella Dimensionale
da 1/2" a 48"
Fitting
SOCKET WELD
Un raccordo Socket weld, comunemente definito con la sigla SW, è un raccordo saldabile tramite accoppiamento maschio/femmina, che permette il cambiamento di direzione del flusso, attraverso la diramazione, riduzione della dimensione del tubo o per il montaggio di dispositivi ausiliari.
I raccordi SW, conosciuti anche come raccordi saldati a tasca, si possono dividere in 2 categorie, i pezzi standard: curve, tee, riduzioni concentriche ed eccentriche, cap e stub ends. Poi ci sono i pezzi speciali: barred tees, lateral tees, flow tees e bend (curve dal raggio di curvatura più ampio, solitamente 3d,5d,7d,10d, ma anche con raggi di curvatura speciali). I raccordi SW o saldati a tasca, rispetto ai raccordi BW, sono più economici da installare in quanto non richiedono lavorazioni particolari.
I raccordi SW, conosciuti anche come raccordi saldati a tasca, si possono dividere in 2 categorie, i pezzi standard: curve, tee, riduzioni concentriche ed eccentriche, cap e stub ends. Poi ci sono i pezzi speciali: barred tees, lateral tees, flow tees e bend (curve dal raggio di curvatura più ampio, solitamente 3d,5d,7d,10d, ma anche con raggi di curvatura speciali). I raccordi SW o saldati a tasca, rispetto ai raccordi BW, sono più economici da installare in quanto non richiedono lavorazioni particolari.

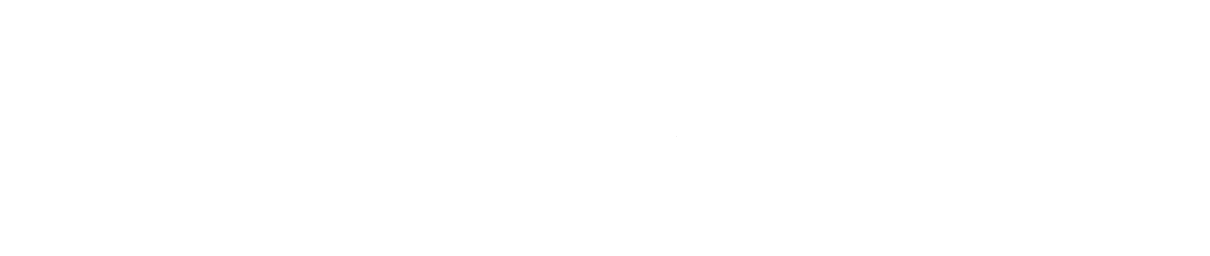

Tutti i raccordi Socket Weld

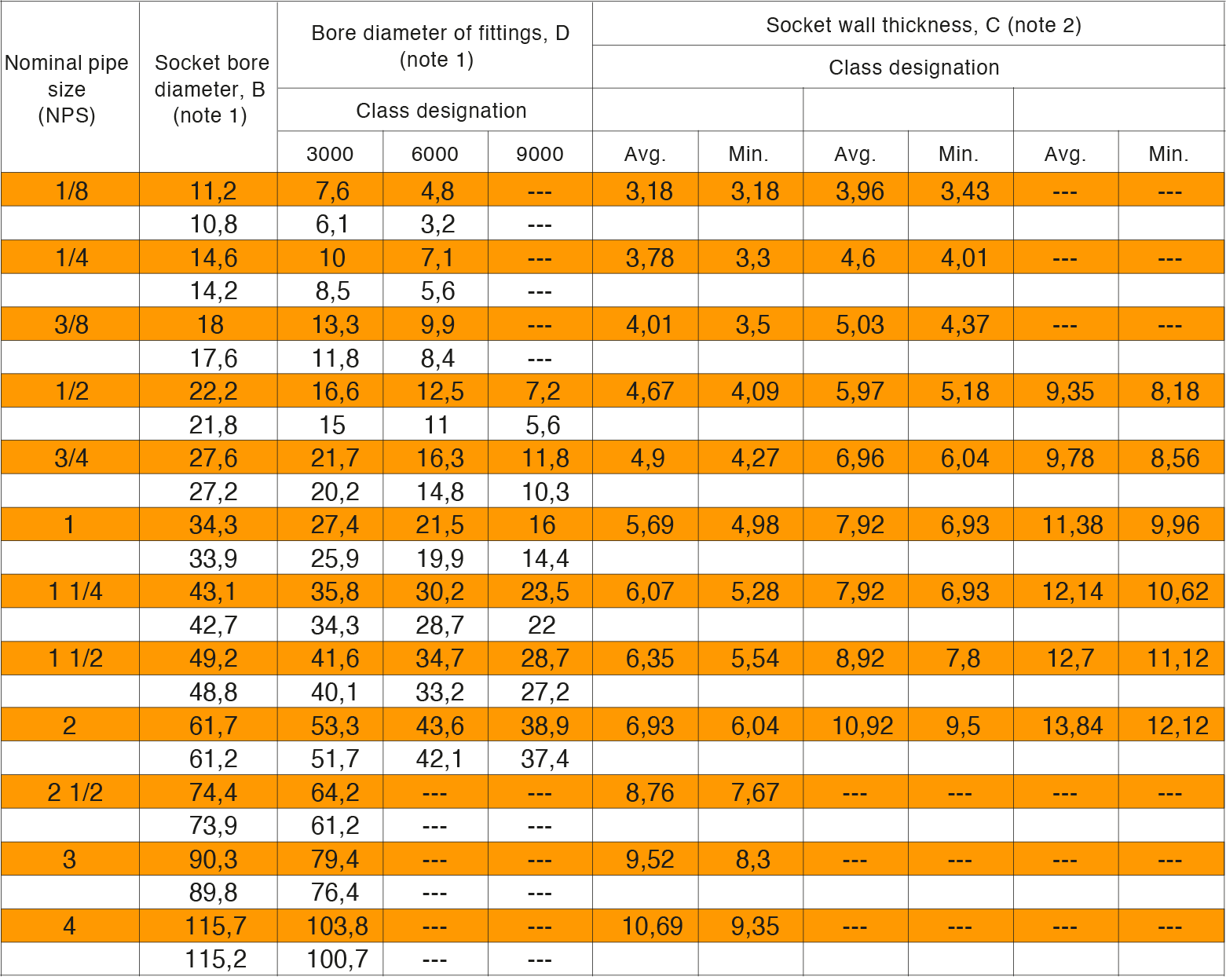

Curve 90 deg / Croci
Produzione
• ASME B 16.11
• BS 3799
• BS 3799
Dimensione
• 1/8′′ - 4“
ASTM / ASME
• A105
• A182 (F5 - F11 - F22 - F91 - F304/F304L - F316/F316L - F321 - F51 DUPLEX)
• A234 WPB
• A350 LF2
• A420 WPL6
• A182 (F1 - F9 - F12)
• A 182 F347
• A182 (F44 - F53 - F55 SUPER DUPLEX)
• A694 F52
• B151 UNS C70600 (Cu-Ni 90/10 - ASTM - EN)
• B164 - B166 - B408 - B425 - B574
• A182 (F5 - F11 - F22 - F91 - F304/F304L - F316/F316L - F321 - F51 DUPLEX)
• A234 WPB
• A350 LF2
• A420 WPL6
• A182 (F1 - F9 - F12)
• A 182 F347
• A182 (F44 - F53 - F55 SUPER DUPLEX)
• A694 F52
• B151 UNS C70600 (Cu-Ni 90/10 - ASTM - EN)
• B164 - B166 - B408 - B425 - B574
Tabelle Dimensionali
Curve 90 deg / Croci
Tee / Curve 45 deg / Coupling / Fondelli
Produzione
• ASME B 16.11
• BS 3799
• BS 3799
Dimensione
• 1/8′′ - 4“
ASTM / ASME
• A105
• A182 (F5 - F11 - F22 - F91 - F304/F304L - F316/F316L - F321 - F51 DUPLEX)
• A234 WPB
• A350 LF2
• A420 WPL6
• A182 (F1 - F9 - F12)
• A 182 F347
• A182 (F44 - F53 - F55 SUPER DUPLEX)
• A694 F52
• B151 UNS C70600 (Cu-Ni 90/10 - ASTM - EN)
• B164 - B166 - B408 - B425 - B574
• A182 (F5 - F11 - F22 - F91 - F304/F304L - F316/F316L - F321 - F51 DUPLEX)
• A234 WPB
• A350 LF2
• A420 WPL6
• A182 (F1 - F9 - F12)
• A 182 F347
• A182 (F44 - F53 - F55 SUPER DUPLEX)
• A694 F52
• B151 UNS C70600 (Cu-Ni 90/10 - ASTM - EN)
• B164 - B166 - B408 - B425 - B574

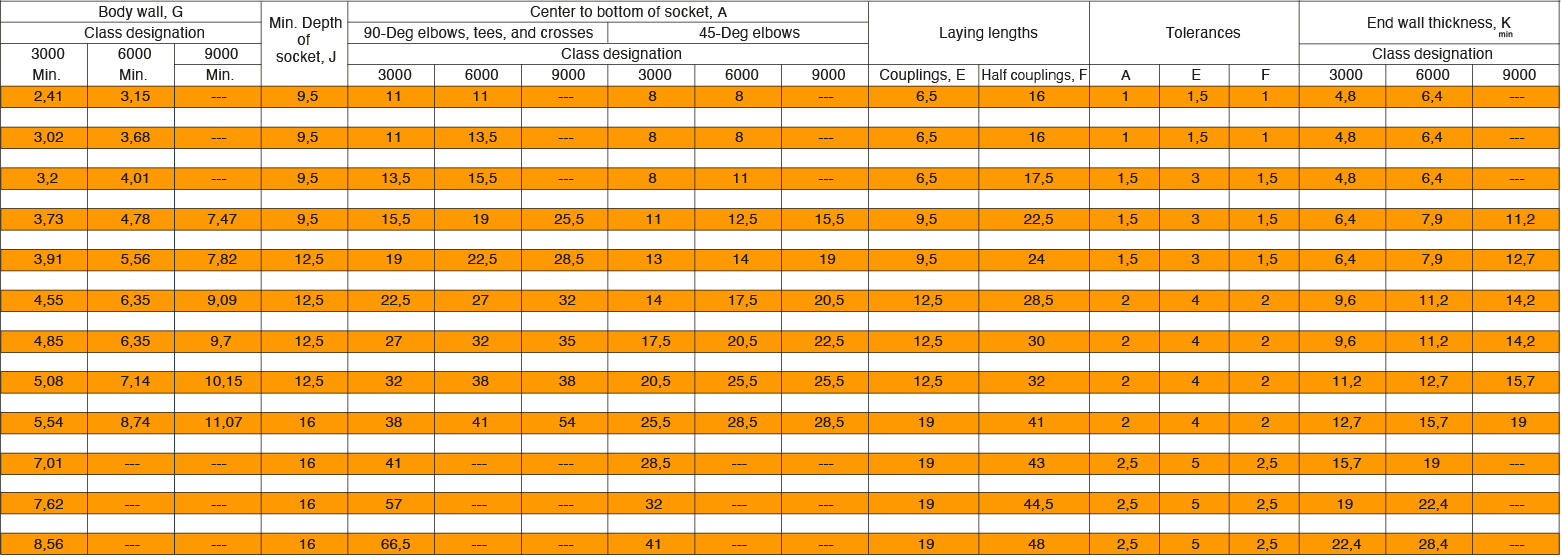

Tabelle Dimensionali
Tee / Curve 45 deg / Accoppiamenti / Fondelli
Fitting
THREADED
Un raccordo Threaded è un raccordo filettato che permette il cambiamento di direzione del flusso, attraverso la diramazione, riduzione della dimensione del tubo o per il montaggio di dispositivi ausiliari.
I raccordi Threaded, conosciuti anche come raccordi filettati, si possono dividere in 2 categorie, i pezzi standard: curve, tee, riduzioni concentriche ed eccentriche, cap e stub ends. Poi ci sono i pezzi speciali: barred tees, lateral tees, flow tees e bend (curve dal raggio di curvatura più ampio, solitamente 3d,5d,7d,10d, ma anche con raggi di curvatura speciali).
I raccordi Threaded, conosciuti anche come raccordi filettati, si possono dividere in 2 categorie, i pezzi standard: curve, tee, riduzioni concentriche ed eccentriche, cap e stub ends. Poi ci sono i pezzi speciali: barred tees, lateral tees, flow tees e bend (curve dal raggio di curvatura più ampio, solitamente 3d,5d,7d,10d, ma anche con raggi di curvatura speciali).
Tutti i raccordi Threaded
Curve ASME
Produzione
• ASME B16.25
Dimensione
• 1/2” – 42” (oltre a richiesta)
Materiale
• ASTM A 234 WPB WPC WP1 WP5 WP9 WP11 WP22 WP91 WP911
• ASTM A 420 WPL6 WPL3
• ASTM A 403 WP 304-304L – 316-316L – 321
• Acciai e leghe speciali a richiesta
• ASTM A860 WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70
• ASTM A 420 WPL6 WPL3
• ASTM A 403 WP 304-304L – 316-316L – 321
• Acciai e leghe speciali a richiesta
• ASTM A860 WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70
Tabelle Dimensionali ASME
Short Radius (R= 1 D)
Long Radius (R= 1,5 D)
Radius (R= 2,5 D)
Radius (R= 3 D)
Radius (R= 5 D)
Curve EN / DIN / ISO
Produzione
• ASME B16.25
Dimensione
• 1/2” – 42” (oltre a richiesta)
Materiale
• ASTM A 234 WPB WPC WP1 WP5 WP9 WP11 WP22 WP91 WP911
• ASTM A 420 WPL6 WPL3
• ASTM A 403 WP 304-304L – 316-316L – 321
• Acciai e leghe speciali a richiesta
• ASTM A860 WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70
• ASTM A 420 WPL6 WPL3
• ASTM A 403 WP 304-304L – 316-316L – 321
• Acciai e leghe speciali a richiesta
• ASTM A860 WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70
Tabelle Dimensionali EN / DIN / ISO
Long Radius (R= 1,5 D)
Radius (R= 2,5 D)
Radius (R= 5 D)
Tee
Produzione
• ASME B16.9 – ASME B16.25
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS – SP 75
• EN 10253-1
• EN 10253-2
• EN 10253-4
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS – SP 75
• EN 10253-1
• EN 10253-2
• EN 10253-4
Dimensione
• 1/2” – 42” (oltre a richiesta)
Smusso
• ASME B16.25
• EN 10253-1
• EN 10253-2
• EN 10253-4
• EN 10253-1
• EN 10253-2
• EN 10253-4
Materiale
• ASME/ASTM SA/A 234 WPB – WP11 – WP22 – WP9 WP91 – WP5 – WP12
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70
• ASTM/ASME A/SA 403 WP304/304L + WP 316/316L
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• EN 10253-2 P235GH/P265GH/P355NH/P355NL-1/L360NB/ L415QB/X11CrMo9-1/13CrMo4-5/10CrMo9-10/L290NB
• 16Mo03/P265NL/X11CrMo5
• EN 10253-4 X6 CrNiTi 10-10/X2 CrNiMo 17-12-2
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70
• ASTM/ASME A/SA 403 WP304/304L + WP 316/316L
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• EN 10253-2 P235GH/P265GH/P355NH/P355NL-1/L360NB/ L415QB/X11CrMo9-1/13CrMo4-5/10CrMo9-10/L290NB
• 16Mo03/P265NL/X11CrMo5
• EN 10253-4 X6 CrNiTi 10-10/X2 CrNiMo 17-12-2
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281
Tabelle Dimensionali
da 1/2" a 3"
da 3 1/2" a 10"
da 12" a 22"
da 24" a 30"
da 32" a 36"
da 38" a 42"
da 44" a 48"
Tee Barrati
Produzione
• ASME B16.9 – ASME B16.25
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS – SP 75
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS – SP 75
Dimensione
• 1/2” – 42” (oltre a richiesta)
Smusso
• ASME B16.25
Materiale
• ASME/ASTM SA/A 234 WPB – WP11 – WP22 – WP9 – WP91 WP5 – WP12
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281
Tabella Dimensionale
Tee Laterali
Produzione
• ASME B16.9 – ASME B16.25
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS – SP 75
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS – SP 75
Dimensione
• 1/2” – 48” (oltre a richiesta)
Smusso
• ASME B16.25
Materiale
• ASME/ASTM SA/A 234 WPB – WP11 – WP22 – WP9 WP91 – WP5 – WP12
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70
• ASTM/ASME A/SA 403 WP304/304L + WP 316/316L
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70
• ASTM/ASME A/SA 403 WP304/304L + WP 316/316L
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281
Tabelle Dimensionali
Calcoli
da 1/2" a 48"
Riduzioni Concentriche ed eccentriche
Produzione
• ASME B16.9 – ASME B16.25
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS – SP 75
• EN 10253-1
• EN 10253-2
• EN 10253-4
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS – SP 75
• EN 10253-1
• EN 10253-2
• EN 10253-4
Dimensione
3/4′′ x 1/2′′ – 48′′ x 30′′ (oltre a richiesta)
Smusso
• ASME B16.25
• EN 10253-1
• EN 10253-2
• EN 10253-4
• EN 10253-1
• EN 10253-2
• EN 10253-4
Materiale
• ASME/ASTM SA/A 234 WPB – WP11 – WP22 – WP9 – WP91 WP5 – WP12
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• ASTM A860 WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• EN 10253-2 P235GH/P265GH/P355NH/P355NL 1 L360NB/L415QB/X11CrMo9-1/13CrMo4-5/10CrMo9-10/L290NB
• 16Mo03/P265NL/X11CrMo5
• EN 10253-4 X6 CrNiTi 10-10/X2 CrNiMo 17-12-2
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• ASTM A860 WPHY42 – WPHY52 – WPHY60 – WPHY65 – WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• EN 10253-2 P235GH/P265GH/P355NH/P355NL 1 L360NB/L415QB/X11CrMo9-1/13CrMo4-5/10CrMo9-10/L290NB
• 16Mo03/P265NL/X11CrMo5
• EN 10253-4 X6 CrNiTi 10-10/X2 CrNiMo 17-12-2
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281
Tabelle Dimensionali
1/2" x 1/2" a 4" x 1/4"
da 4” x 1” a 18” x 16”
da 18” x 14” a 30” x 18”
da 30” x 16” a 40” x 28”
da 40” x 24” a 48” x 30”
Croci
Produzione
• ASME B16.9 – ASME B16.25
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS SP-75
• EN 10253-1
• EN 10253-2
• EN 10253-4
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS SP-75
• EN 10253-1
• EN 10253-2
• EN 10253-4
Dimensione
1/2′′ – 48′′
Smusso
• ASME B16.25
• EN 10253-1
• EN 10253-2
• EN 10253-4
• EN 10253-1
• EN 10253-2
• EN 10253-4
Materiale
• ASME/ASTM SA/A 234 WPB – WP11 – WP22 – WP9 – WP91 WP5 – WP12
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• EN 10253-2 P235GH/P265GH/P355NH/P355NL 1 L360NB/L415QB/X11CrMo9-1/13CrMo4-5/10CrMo9-10/L290NB
• 16Mo03/P265NL/X11CrMo5
• EN 10253-4 X6 CrNiTi 10-10/X2 CrNiMo 17-12-2
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• EN 10253-2 P235GH/P265GH/P355NH/P355NL 1 L360NB/L415QB/X11CrMo9-1/13CrMo4-5/10CrMo9-10/L290NB
• 16Mo03/P265NL/X11CrMo5
• EN 10253-4 X6 CrNiTi 10-10/X2 CrNiMo 17-12-2
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281
Tabella Dimensionale
da 1/2" a 48"
Fondelli
Produzione
• ASME B16.9 – ASME B16.25
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS – SP 75
• EN 10253-1
• EN 10253-2
• EN 10253-4
• DIN 2605 – 2615 – 2616 – 2617
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS – SP 75
• EN 10253-1
• EN 10253-2
• EN 10253-4
Dimensione
1/2′′ – 48′′
Smusso
• ASME B16.9 – ASME B16.25
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS SP-75
• MSS SP-25
• AFNOR NFA 49 – 281
• MSS SP-75
Materiale
• ASME/ASTM SA/A 234 WPB – WP11 – WP22 – WP9 – WP91 WP5 – WP12
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• EN 10253-2 P235GH/P265GH/P355NH/P355NL 1 L360NB/L415QB/X11CrMo9-1/13CrMo4-5/10CrMo9-10/L290NB
• 16Mo03/P265NL/X11CrMo5
• EN 10253-4 X6 CrNiTi 10-10/X2 CrNiMo 17-12-2
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281
• ASME/ASTM SA/A 420 WPL6
• ASTM A 860 – WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• MSS SP-75 WPHY42 – WPHY52 – WPHY60 – WPHY65 WPHY70
• NACE MR0175 / ISO15156-2:2015 A.2
• NACE MR0103 / ISO17345:2015, 13.1&15
• EN 10253-2 P235GH / P265GH
• EN 10253-2 P235GH/P265GH/P355NH/P355NL 1 L360NB/L415QB/X11CrMo9-1/13CrMo4-5/10CrMo9-10/L290NB
• 16Mo03/P265NL/X11CrMo5
• EN 10253-4 X6 CrNiTi 10-10/X2 CrNiMo 17-12-2
• DIN 2609 – ST35.8/I-ST37.0W
• AE250B NFA49 – 281
• A42CP NFA36 – 205
• AE220A NFA 49 – 281
Tabella Dimensionale
da 1/2" a 48"
